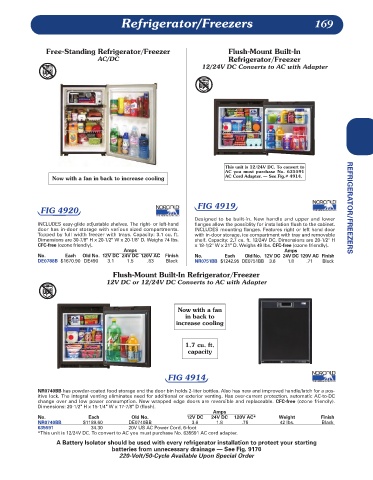

Page 170 - Lewis

Refrigerator/Freezers 169

Free-Standing Refrigerator/Freezer Flush-Mount Built-In
AC/DC Refrigerator/Freezer
12/24V DC Converts to AC with Adapter

This unit is 12/24V DC. To convert to
AC you must purchase No. 635591
AC Cord Adapter. — See Fig.# 4914.
Now with a fan in back to increase cooling

FIG 4919
FIG 4920 REFRIGERATOR/FREEZERS
Designed to be built-in. New handle and upper and lower
INCLUDES easy-glide adjustable shelves. The right- or left-hand flanges allow the possiblity for installation flush to the cabinet.
door has in-door storage with various sized compartments. INCLUDES mounting flanges. Features right or left hand door
Topped by full width freezer with trays. Capacity: 3.1 cu. ft. with in-door storage, ice compartment with tray and removable
Dimensions are 30-7/8" H x 20-1/2" W x 20-1/8" D. Weighs 74 lbs. shelf. Capacity: 2.7 cu. ft. 12/24V DC. Dimensions are 20-1/2" H
CFC-free (ozone friendly). x 18-1/2" W x 21" D. Weighs 49 lbs. CFC-free (ozone friendly).
Amps Amps
No. Each Old No. 12V DC 24V DC 120V AC Finish No. Each Old No. 12V DC 24V DC 120V AC Finish
DE0788B $1670.90 DE490 3.1 1.5 .83 Black NR0751BB $1242.95 DE0751BB 3.6 1.8 .71 Black
Flush-Mount Built-In Refrigerator/Freezer
12V DC or 12/24V DC Converts to AC with Adapter

Now with a fan
in back to
increase cooling

1.7 cu. ft.
capacity

FIG 4914

NR0740BB has powder-coated food storage and the door bin holds 2-liter bottles. Also has new and improved handle/latch for a pos-
itive lock. The integral venting eliminates need for additional or exterior venting. Has over-current protection, automatic AC-to-DC
change over and low power consumption. New wrapped edge doors are reversible and replaceable. CFC-free (ozone friendly).
Dimensions: 20-1/2" H x 15-1/4" W x 17-7/8" D (flush).
Amps
No. Each Old No. 12V DC 24V DC 120V AC* Weight Finish
NR0740BB $1189.60 DE0740BB 3.6 1.8 .75 42 lbs. Black
635591 34.30 20V US AC Power Cord, 6-foot
*This unit is 12/24V DC. To convert to AC you must purchase No. 635591 AC cord adapter.
A Battery Isolator should be used with every refrigerator installation to protect your starting
batteries from unnecessary drainage — See Fig. 9170
220-Volt/50-Cycle Available Upon Special Order
