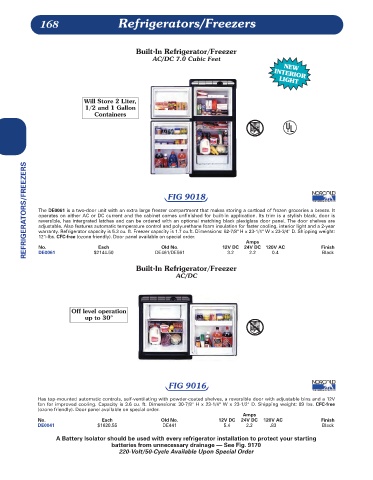

168 Refrigerators/Freezers

Built-In Refrigerator/Freezer
AC/DC 7.0 Cubic Feet
NEW
INTERIOR
LIGHT

Will Store 2 Liter,
1/2 and 1 Gallon
Containers

REFRIGERATORS/FREEZERS The DE0061 is a two-door unit with an extra large freezer compartment that makes storing a cartload of frozen groceries a breeze. It

FIG 9018

operates on either AC or DC current and the cabinet comes unfinished for built-in application. Its trim is a stylish black, door is
reversible, has intergrated latches and can be ordered with an optional matching black plexiglass door panel. The door shelves are
adjustable. Also features automatic temperature control and polyurethane foam insulation for faster cooling, interior light and a 2-year
warranty. Refrigerator capacity is 5.3 cu. ft. Freezer capacity is 1.7 cu.ft. Dimensions: 52-7/8" H x 23-1/4" W x 23-3/4" D. Shipping weight:
121-lbs. CFC-free (ozone friendly). Door panel available on special order.
Amps
12V DC
Each
Old No.
No.
DE461/DE561
3.2
Black
DE0061
0.4
2.2
$2144.50
Built-In Refrigerator/Freezer 24V DC 120V AC Finish
AC/DC
Off level operation
up to 30°

FIG 9016

Has top-mounted automatic controls, self-ventilating with powder-coated shelves, a reversible door with adjustable bins and a 12V
fan for improved cooling. Capacity is 3.6 cu. ft. Dimensions: 30-7/8" H x 23-1/4" W x 23-1/2" D. Shipping weight: 89 lbs. CFC-free
(ozone friendly). Door panel available on special order.
Amps
No. Each Old No. 12V DC 24V DC 120V AC Finish
DE0041 $1620.55 DE441 5.4 2.2 .83 Black

A Battery Isolator should be used with every refrigerator installation to protect your starting
batteries from unnecessary drainage — See Fig. 9170
220-Volt/50-Cycle Available Upon Special Order
