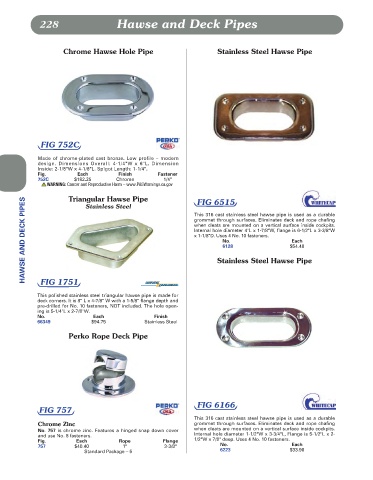

228 Hawse and Deck Pipes

Chrome Hawse Hole Pipe Stainless Steel Hawse Pipe

FIG 752C

Made of chrome-plated cast bronze. Low profile – modern
design. Dimensions Overall: 4-1/4"W x 6"L. Dimension
Inside: 2-1/8"W x 4-1/8"L. Spigot Length: 1-1/4".
Fig. Each Finish Fastener
752C $182.25 Chrome 1/4"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov FIG 6515
Triangular Hawse Pipe
HAWSE AND DECK PIPES This 316 cast stainless steel hawse pipe is used as a durable
Stainless Steel

grommet through surfaces. Eliminates deck and rope chafing
when cleats are mounted on a vertical surface inside cockpits.
Internal hole diameter 4"L x 1-7/8"W, flange is 6-1/2"L x 3-3/8"W
x 1-1/8"D. Uses 4 No. 10 fasteners.
No.
Each
6128
$54.40
Stainless Steel Hawse Pipe

FIG 1751

This polished stainless steel triangular hawse pipe is made for
deck corners. It is 8" L x 4-7/8" W with a 1-5/8" flange depth and
pre-drilled for No. 10 fasteners, NOT included. The hole open-
ing is 5-1/4"L x 2-7/8"W.
No. Each Finish
66349 $94.75 Stainless Steel
Perko Rope Deck Pipe

FIG 6166
FIG 757
This 316 cast stainless steel hawse pipe is used as a durable
Chrome Zinc grommet through surfaces. Eliminates deck and rope chafing
No. 757 is chrome zinc. Features a hinged snap down cover when cleats are mounted on a vertical surface inside cockpits.
and use No. 8 fasteners. Internal hole diameter 1-1/2"W x 3-3/4"L, Flange is 5-1/2"L x 2-
Fig. Each Rope Flange 1/2"W x 7/8" deep. Uses 4 No. 10 fasteners.
757 $40.40 1" 3-3/8" No. Each
Standard Package – 5 6223 $33.90
