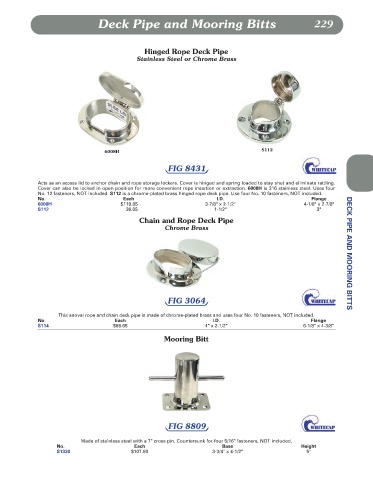

Deck Pipe and Mooring Bitts 229

Hinged Rope Deck Pipe
Stainless Steel or Chrome Brass

S112
6008H

FIG 8431

Acts as an access lid to anchor chain and rope storage lockers. Cover is hinged and spring loaded to stay shut and eliminate rattling.
Cover can also be locked in open position for more convenient rope insertion or extraction. 6008H is 316 stainless steel. Uses four
No. 12 fasteners, NOT included. S112 is a chrome-plated brass hinged rope deck pipe. Use four No. 10 fasteners, NOT included.
No. Each I.D. Flange
6008H $119.85 3-7/8" x 2-1/2" 4-1/8" x 2-7/8"
S112 36.05 1-1/2" 3"
Chain and Rope Deck Pipe
Chrome Brass DECK PIPE AND MOORING BITTS

FIG 3064

This anoval rope and chain deck pipe is made of chrome-plated brass and uses four No. 10 fasteners, NOT included.
No. Each I.D. Flange
S114 $86.65 4" x 2-1/2" 6-1/8" x 4-3/8"

Mooring Bitt

FIG 8809

Made of stainless steel with a 7" cross pin. Countersunk for four 5/16" fasteners, NOT included.
No. Each Base Height
S1320 $107.80 3-3/4" x 4-1/2" 5"
