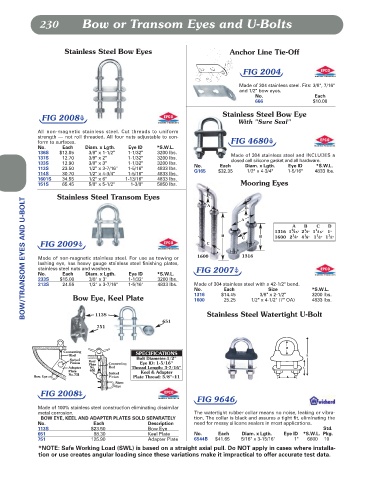

230 Bow or Transom Eyes and U-Bolts

Stainless Steel Bow Eyes Anchor Line Tie-Off

FIG 2004

Made of 304 stainless steel. Fits: 3/8", 7/16"
and 1/2" bow eyes.
No. Each
666 $10.00

Stainless Steel Bow Eye
FIG 2008b
With "Sure Seal"
All non-magnetic stainless steel. Cut threads to uniform
strength — not roll threaded. All four nuts adjustable to con-
form to surfaces. FIG 4680b
No. Each Diam. x Lgth. Eye ID *S.W.L.
136S $12.05 3/8" x 1-1/2" 1-1/32" 3200 lbs.
137S 12.70 3/8" x 2" 1-1/32" 3200 lbs. Made of 304 stainless steel and INCLUDES a
133S 12.90 3/8" x 3" 1-1/32" 3200 lbs. No. Each closed cell silicone gasket and all hardware.
*S.W.L.
Eye ID
Diam. x Lgth.
113S 23.50 1/2" x 3-7/16" 1-5/16" 4833 lbs. G165 $32.35 1/2" x 4-3/4" 1-5/16" 4833 lbs.
114S 30.70 1/2" x 4-3/4" 1-5/16" 4833 lbs.
1601S 34.55 1/2" x 6" 1-13/16" 4833 lbs.
151S 65.45 5/8" x 5-1/2" 1-3/8" 5850 lbs. Mooring Eyes
Stainless Steel Transom Eyes D
BOW/TRANSOM EYES AND U-BOLT
A
D
A
A B C D
3 1 1
1316 1 ⁄16" 2 ⁄4" 1 ⁄16" 1"
B B 1 1 1 1
C 1600 2 ⁄4" 4 ⁄8" 1 ⁄2" 1 ⁄2"
FIG 2009b C
Made of non-magnetic stainless steel. For use as towing or 1600 1316
lashing eye, has heavy gauge stainless steel finishing plates,
stainless steel nuts and washers. FIG 2007b
No. Each Diam. x Lgth. Eye ID *S.W.L.
233S $15.00 3/8" x 3" 1-1/32" 3200 lbs.
213S 24.55 1/2" x 3-7/16" 1-5/16" 4833 lbs. Made of 304 stainless steel with a 42-1/2° bend.
No. Each Size *S.W.L.
1316 $14.45 3/8" x 2-1/2" 3200 lbs.
Bow Eye, Keel Plate 1600 25.25 1/2" x 4-1/2" (7" OA) 4833 lbs.

113S Stainless Steel Watertight U-Bolt
651
751

SPECIFICATIONS
Bolt Diameter:1/2"
Eye ID: 1-5/16"
Thread Length: 3-7/16"
Keel & Adapter
Plate Thread: 5/8"–11

FIG 2008b
FIG 9646
Made of 100% stainless steel construction eliminating dissimilar
metal corrosion. The watertight rubber collar means no noise, leaking or vibra-
BOW EYE, KEEL AND ADAPTER PLATES SOLD SEPARATELY tion. The collar is black and assures a tight fit, eliminating the
No. Each Description need for messy silicone sealers in most applications.
113S $23.50 Bow Eye Std.
651 88.30 Keel Plate No. Each Diam. x Lgth. Eye ID *S.W.L. Pkg.
751 125.90 Adapter Plate 6544B $41.65 5/16" x 3-15/16" 1" 6600 10
*NOTE: Safe Working Load (SWL) is based on a straight axial pull. Do NOT apply in cases where installa-
tion or use creates angular loading since these variations make it impractical to offer accurate test data.
