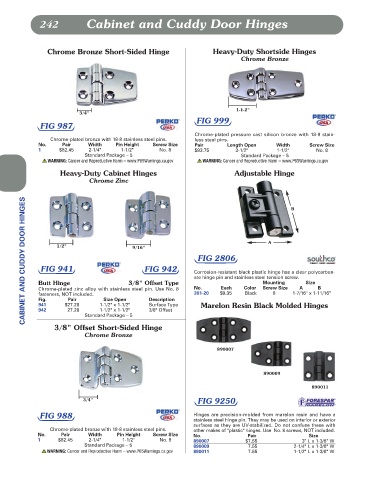

242 Cabinet and Cuddy Door Hinges

Chrome Bronze Short-Sided Hinge Heavy-Duty Shortside Hinges
Chrome Bronze

1-1-2"
3/4"
FIG 999
FIG 987
Chrome-plated pressure cast silicon bronze with 18-8 stain-
Chrome-plated bronze with 18-8 stainless steel pins. less steel pins.
No. Pair Width Pin Height Screw Size Pair Length Open Width Screw Size
1 $82.45 2-1/4" 1-1/2" No. 8 $93.75 3-1/2" 1-1/2" No. 8
Standard Package – 5 Standard Package – 5
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Heavy-Duty Cabinet Hinges Adjustable Hinge
Chrome Zinc

CABINET AND CUDDY DOOR HINGES
B

A
1/2" 9/16"
FIG 2806
FIG 941 FIG 942 Corrosion-resistant black plastic hinge has a clear polycarbon-
ate hinge pin and stainless steel tension screw.
Butt Hinge 3/8" Offset Type Mounting Size
Chrome-plated zinc alloy with stainless steel pin. Use No. 8 No. Each Color Screw Size A B
fasteners, NOT included. 301-20 $9.35 Black 8 1-7/16" x 1-11/16"
Fig. Pair Size Open Description
941 $27.20 1-1/2" x 1-1/2" Surface Type Marelon Resin Black Molded Hinges
942 27.20 1-1/2" x 1-1/2" 3/8" Offset
Standard Package – 5
3/8" Offset Short-Sided Hinge
Chrome Bronze

890007

890009

890011

3/4" FIG 9250

FIG 988 Hinges are precision-molded from marelon resin and have a
stainless steel hinge pin. They may be used on interior or exterior
surfaces as they are UV-stabilized. Do not confuse these with
Chrome-plated bronze with 18-8 stainless steel pins. other makes of "plastic" hinges. Use No. 8 screws, NOT included.
No. Pair Width Pin Height Screw Size No. Pair Size
1 $82.45 2-1/4" 1-1/2" No. 8 890007 $7.55 3" L x 1-3/8" W
Standard Package – 5 890009 7.55 2-1/4" L x 1-3/8" W
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 890011 7.55 1-1/2" L x 1-3/8" W
