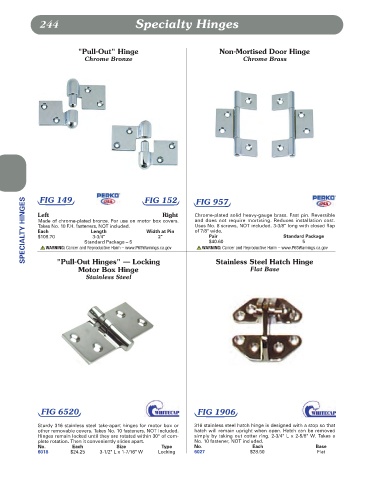

244 Specialty Hinges

"Pull-Out" Hinge Non-Mortised Door Hinge
Chrome Bronze Chrome Brass

SPECIALTY HINGES Left Standard Package – 5 FIG 152 Chrome-plated solid heavy-gauge brass. Fast pin. Reversible
FIG 149
FIG 957
Right
and does not require mortising. Reduces installation cost.
Made of chrome-plated bronze. For use on motor box covers.
Uses No. 8 screws, NOT included. 3-3/8" long with closed flap
Takes No. 10 F.H. fasteners, NOT included.
Width at Pin
Length
of 7/8" wide.
Each
Pair
Standard Package
3-3/4"
$108.70
2"
5
$40.60
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
"Pull-Out Hinges" — Locking
Flat Base
Motor Box Hinge Stainless Steel Hatch Hinge
Stainless Steel

FIG 6520 FIG 1906

Sturdy 316 stainless steel take-apart hinges for motor box or 316 stainless steel hatch hinge is designed with a stop so that
other removable covers. Takes No. 10 fasteners, NOT included. hatch will remain upright when open. Hatch can be removed
Hinges remain locked until they are rotated within 30° of com- simply by taking out cotter ring. 2-3/4" L x 2-5/8" W. Takes a
plete rotation. Then it conveniently slides apart. No. 10 fastener, NOT included.
No. Each Size Type No. Each Base
6018 $24.25 3-1/2" L x 1-7/16" W Locking 6027 $28.50 Flat
