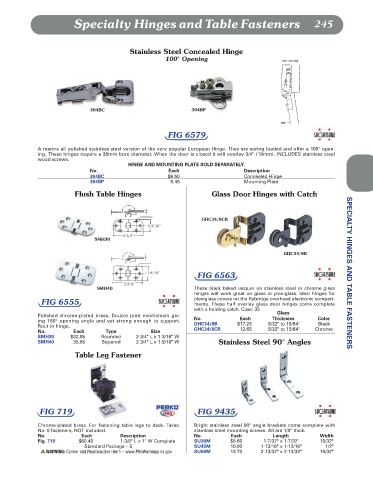

Specialty Hinges and Table Fasteners 245

Stainless Steel Concealed Hinge
100° Opening

304BC 304BP

FIG 6579

A marine all polished stainless steel version of the very popular European Hinge. They are spring loaded and offer a 100° open-
ing. These hinges require a 35mm bore diameter. When the door is closed it will overlay 3/4" (19mm). INCLUDES stainless steel
wood screws.
HINGE AND MOUNTING PLATE SOLD SEPARATELY.
No. Each Description
304BC $9.50 Concealed Hinge
304BP 5.45 Mounting Plate
Flush Table Hinges Glass Door Hinges with Catch

GHC34/8CR
1-3/16"
2-3/4"
SMH30

GHC34/8B

1-9/16" SPECIALTY HINGES AND TABLE FASTENERS
FIG 6563
2-3/4"
SMH40 These black baked lacquer on stainless steel or chrome glass
hinges will work great on glass or plexiglass. Ideal hinges for
plexiglass covers on the flybridge overhead electronic compart-
FIG 6555 ments. These half overlay glass door hinges come complete
with a holding catch. Case: 35
Polished chrome-plated brass. Double joint mechanism giv- Glass
ing 180° opening angle and yet strong enough to support. No. Each Thickness Color
Rout in hinge. GHC34/8B $17.25 5/32" to 15/64" Black
No. Each Type Size GHC34/8CR 12.65 5/32" to 15/64" Chrome
SMH30 $32.85 Rounded 2-3/4" L x 1-3/16" W
SMH40 35.85 Squared 2-3/4" L x 1-9/16" W Stainless Steel 90° Angles
Table Leg Fastener

FIG 719 FIG 9435

Chrome-plated brass. For fastening table legs to deck. Takes Bright stainless steel 90° angle brackets come complete with
No. 8 fasteners, NOT included. stainless steel mounting screws. All are 1/8" thick.
No. Each Description No. Each Length Width
Fig. 719 $60.45 1-3/8" L x 1" W Complete SU30M $8.60 1-7/32" x 1-7/32" 15/32"
Standard Package – 5 SU45M 10.80 1-13/16" x 1-13/16" 1/2"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov SU60M 13.70 2-13/32" x 2-13/32" 19/32"
