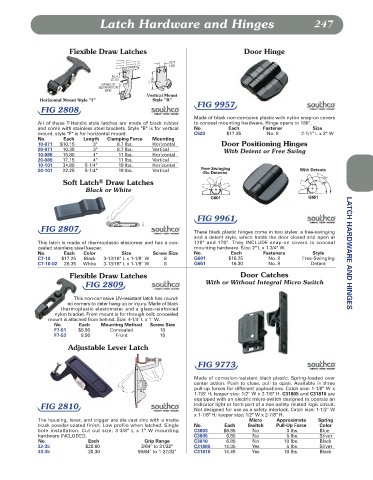

Page 248 - Lewis

Latch Hardware and Hinges 247

Flexible Draw Latches Door Hinge

Vertical Mount
Horizontal Mount Style "F" Style "R"
FIG 9957
FIG 2808
Made of black non-corrosive plastic with nylon snap-on covers
All of these T-Handle style latches are made of black rubber to conceal mounting hardware. Hinge opens to 180°.
and come with stainless steel brackets. Style "R" is for vertical No. Each Fastener Size
mount, style "F" is for horizontal mount. C620 $17.35 No. 8 2-1/4" L x 2" W
No. Each Length Clamping Force Mounting
10-071 $10.15 3" 8.7 lbs. Horizontal Door Positioning Hinges
20-071 10.35 3" 8.7 lbs. Vertical With Detent or Free Swing
10-086 15.80 4" 11 lbs. Horizontal
20-086 17.15 4" 11 lbs. Vertical
10-101 34.80 5-1/4" 19 lbs. Horizontal
20-101 22.25 5-1/4" 19 lbs. Vertical
Soft Latch Draw Latches
®
Black or White

FIG 9961
FIG 2807 These black plastic hinges come in two styles: a free-swinging
and a detent style, which holds the door closed and open at
This latch is made of thermoplastic elastomer and has a con- 120° and 170°. They INCLUDE snap-on covers to conceal
cealed stainless steel keeper. mounting hardware. Size: 2" L x 1-3/4" W.
No. Each Color Size Screw Size No. Each Fasteners Style LATCH HARDWARE AND HINGES
C7-10 $17.25 Black 3-13/16" L x 1-1/8" W 8 G601 $16.25 No. 8 Free-Swinging
C7-10-02 26.35 White 3-13/16" L x 1-1/8" W 8 G651 16.30 No. 8 Detent

Flexible Draw Latches Door Catches
FIG 2809 With or Without Integral Micro Switch

This non-corrosive UV-resistant latch has round-
ed corners to deter hang-up or injury. Made of black
thermoplastic elastometer and a glass-reinforced
nylon bracket. Front mount is for through bolt; concealed
mount is attached from behind. Size: 4-1/4" L x 1" W.
No. Each Mounting Method Screw Size
F7-51 $8.90 Concealed 10
F7-53 8.90 Front 10

Adjustable Lever Latch
y yy FIG 9773

Made of corrosion-resistant black plastic. Spring-loaded over
center action. Push to close, pull to open. Available in three
pull-up forces for different applications. Catch size: 1-1/8" W x
1-7/8' H; keeper size: 1/2" W x 2-7/8" H. C31805 and C31810 are
equipped with an electric micro-switch designed to operate an
y Not designed for use as a safety interlock. Catch size: 1-1/2" W
FIG 2810 indicator light or form part of a non-safety related logic circuit.
The housing, lever, and trigger are die cast zinc with a matte x 1-7/8" H; keeper size: 1/2" W x 2-7/8" H. Spring
Approximate
Micro
black powder-coated finish. Low profile when latched. Single No. Each Switch Pull-Up Force Color
hole installation. Cut out size: 3-3/8" L x 1" W mounting C3803 $6.85 No 3 lbs. Blue
hardware INCLUDED. C3805 6.85 No 5 lbs. Silver
No. Each Grip Range C3810 6.85 No 10 lbs. Black
32-35 $20.60 3/64" to 31/32" C31805 14.35 Yes 5 lbs. Silver
33-35 20.30 59/64" to 1-27/32" C31810 14.45 Yes 10 lbs. Black
