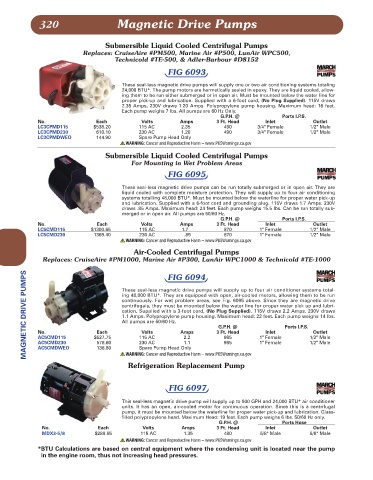

320 Magnetic Drive Pumps

Submersible Liquid Cooled Centrifugal Pumps
Replaces: CruiseAire #PM500, Marine Air #P500, LunAir WPC500,
Technicold #TE-500, & Adler-Barbour #D8152

FIG 6093

These seal-less magnetic drive pumps will supply one or two air conditioning systems totaling
24,000 BTU*. The pump motors are hermetically sealed in epoxy. They are liquid cooled, allow-
ing them to be run either submerged or in open air. Must be mounted below the water line for
proper pick-up and lubrication. Supplied with a 6-foot cord, (No Plug Supplied). 115V draws
2.35 Amps, 230V draws 1.20 Amps. Polypropylene pump housing. Maximum head: 16 feet.
Each pump weighs 7 lbs. All pumps are 60 Hz Only.
G.P.H. @ Ports I.P.S.
No. Each Volts Amps 3 Ft. Head Inlet Outlet
LC3CPMD115 $538.20 115 AC 2.35 490 3/4" Female 1/2" Male
LC3CPMD230 610.10 230 AC 1.20 490 3/4" Female 1/2" Male
LC3CPMDWEO 144.90 Spare Pump Head Only
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Submersible Liquid Cooled Centrifugal Pumps
For Mounting in Wet Problem Areas
FIG 6095

These seal-less magnetic drive pumps can be run totally submerged or in open air. They are
liquid cooled with complete moisture protection. They will supply up to four air conditioning
systems totalling 48,000 BTU*. Must be mounted below the waterline for proper water pick-up
and lubrication. Supplied with a 6-foot cord and grounding plug. 115V draws 1.7 Amps. 230V
draws .85 Amps. Maximum head: 24 feet. Each pump weighs 15.5 lbs. Can be run totally sub-
merged or in open air. All pumps are 50/60 Hz.
G.P.H. @ Ports I.P.S.
No. Each Volts Amps 3 Ft. Head Inlet Outlet
LC5CMD115 $1300.65 115 AC 1.7 870 1" Female 1/2" Male
LC5CMD230 1369.40 230 AC .85 870 1" Female 1/2" Male
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Air-Cooled Centrifugal Pumps
Replaces: CruiseAire #PM1000, Marine Air #P300, LunAir WPC1000 & Technicold #TE-1000

MAGNETIC DRIVE PUMPS No. $527.75 These seal-less magnetic drive pumps will supply up to four air conditioner systems total-
FIG 6094

ing 48,000 BTU*. They are equipped with open, air-cooled motors, allowing them to be run
continuously. For wet problem areas, see Fig. 6095 above. Since they are magnetic drive
centrifugals, they must be mounted below the water line for proper water pick up and lubri-
cation. Supplied with a 3-foot cord, (No Plug Supplied). 115V draws 2.2 Amps. 230V draws
1.1 Amps. Polypropylene pump housing. Maximum head: 22 feet. Each pump weighs 14 lbs.
All pumps are 50/60 Hz.
G.P.H. @
Ports I.P.S.
Amps
Volts
3 Ft. Head
Inlet
Outlet
Each
985
115 AC
AC5CMD115
1/2" Male
1" Female
2.2
AC5CMD230
1.1
985
230 AC
578.60
136.80
Spare Pump Head Only
AC5CMDWEO
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Refrigeration Replacement Pump 1" Female 1/2" Male
FIG 6097
This seal-less magnetic drive pump will supply up to 500 GPH and 24,000 BTU* air conditioner
units. It has an open, air-cooled motor for continuous operation. Since this is a centrifugal
pump, it must be mounted below the waterline for proper water pick-up and lubrication. Glass-
filled polypropylene head. Maximum Head: 19 feet. Each pump weighs 6 lbs. 50/60 Hz only.
G.P.H. @ Ports Hose
No. Each Volts Amps 3 Ft. Head Inlet Outlet
MDX3-5/8 $288.55 115 AC 1.35 480 5/8" Male 5/8" Male
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
*BTU Calculations are based on central equipment where the condensing unit is located near the pump
in the engine room, thus not increasing head pressures.
