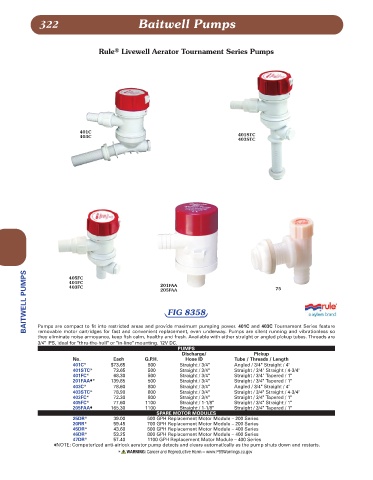

Page 323 - Lewis

322 Baitwell Pumps

Rule Livewell Aerator Tournament Series Pumps
®

401C
403C 401STC
403STC

BAITWELL PUMPS 405FC 201FAA 75
401FC
403FC
205FAA

FIG 8358

Pumps are compact to fit into restricted areas and provide maximum pumping power. 401C and 403C Tournament Series feature
removable motor cartridges for fast and convenient replacement, even underway. Pumps are silent running and vibrationless so
they eliminate noise annoyance, keep fish calm, healthy and fresh. Available with either straight or angled pickup tubes. Threads are
3/4" IPS, ideal for "thru-the-hull" or "in-line" mounting. 12V DC.
PUMPS
Discharge/ Pickup
No. Each G.P.H. Hose ID Tube / Threads / Length
401C* $73.65 500 Straight / 3/4" Angled / 3/4" Straight / 4"
401STC* 73.65 500 Straight / 3/4" Straight / 3/4" Straight / 4-3/4"
401FC* 68.30 500 Straight / 3/4" Straight / 3/4" Tapered / 1"
201FAA©* 139.85 500 Straight / 3/4" Straight / 3/4" Tapered / 1"
403C* 78.60 800 Straight / 3/4" Angled / 3/4" Straight / 4"
403STC* 78.90 800 Straight / 3/4" Straight / 3/4" Straight / 4-3/4"
403FC* 72.30 800 Straight / 3/4" Straight / 3/4" Tapered / 1"
405FC* 77.60 1100 Straight / 1-1/8" Straight / 3/4" Straight / 1"
205FAA© 165.30 1100 Straight / 1-1/8" Straight / 3/4" Tapered / 1"
SPARE MOTOR MODULES
25DR* 39.00 500 GPH Replacement Motor Module – 200 Series
20RR* 59.45 700 GPH Replacement Motor Module – 200 Series
45DR* 43.60 500 GPH Replacement Motor Module – 400 Series
46DR* 53.25 800 GPH Replacement Motor Module – 400 Series
47DR* 57.40 1100 GPH Replacement Motor Module – 400 Series
©NOTE: Computerized anti-airlock aerator pump detects and clears automatically as the pump shuts down and restarts.
* WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
