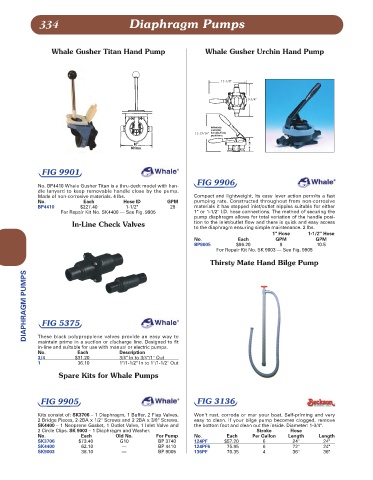

334 Diaphragm Pumps

Whale Gusher Titan Hand Pump Whale Gusher Urchin Hand Pump

11-1/8"

9-3/4"

11-13/16"

FIG 9901
FIG 9906
No. BP4410 Whale Gusher Titan is a thru-deck model with han-
dle lanyard to keep removable handle close by the pump.
Made of non-corrosive materials. 4 lbs. Compact and lightweight, its easy lever action permits a fast
No. Each Hose ID GPM pumping rate. Constructed throughout from non-corrosive
BP4410 $227.40 1-1/2" 28 materials it has stepped inlet/outlet nipples suitable for either
For Repair Kit No. SK4400 — See Fig. 9905 1" or 1-1/2" I.D. hose connections. The method of securing the
pump diaphragm allows for total variation of the handle posi-
In-Line Check Valves tion to the inlet/outlet flow and there is quick and easy access
to the diaphragm ensuring simple maintenance. 2 lbs.
1" Hose 1-1/2" Hose
No. Each GPM GPM
BP9005 $96.20 9 10.5
For Repair Kit No. SK 9003 — See Fig. 9905

Thirsty Mate Hand Bilge Pump
DIAPHRAGM PUMPS FIG 5375

These black polypropylene valves provide an easy way to
maintain prime in a suction or discharge line. Designed to fit
in-line and suitable for use with manual or electric pumps.
No. Each Description
3/4 $31.20 3/4" In to 3/4"/1" Out
1 36.10 1"/1-1/2" In to 1"/1-1/2" Out

Spare Kits for Whale Pumps

FIG 9905 FIG 3136

Kits consist of: SK3706 – 1 Diaphragm, 1 Buffer, 2 Flap Valves, Won't rust, corrode or mar your boat. Self-priming and very
2 Bridge Pieces, 2-2BA x 1/2" Screws and 2 2BA x 3/8" Screws. easy to clean. If your bilge pump becomes clogged, remove
SK4400 – 1 Neoprene Gasket, 1 Outlet Valve, 1 Inlet Valve and the bottom foot and clean out the inside. Diameter: 1-3/4".
2 Circle Clips. SK 9003 – 1 Diaphragm and Washer. Stroke Hose
No. Each Old No. For Pump No. Each Per Gallon Length Length
SK3706 $73.40 G10 BP 3740 124PF $57.20 6 24" 24"
SK4400 62.10 — BP 4410 124PF6 75.95 6 72" 24"
SK9003 38.10 — BP 9005 136PF 70.35 4 36" 36"
