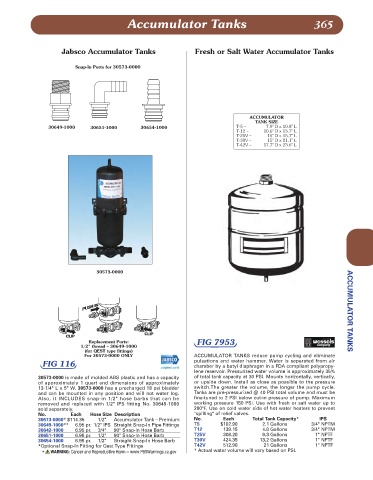

Accumulator Tanks 365

Jabsco Accumulator Tanks Fresh or Salt Water Accumulator Tanks

Snap-In Ports for 30573-0000

ACCUMULATOR
TANK SIZE
30649-1000 30651-1000 30654-1000 T-5 – 7.9" D x 10.8" L
T-12 – 10.6" D x 13.7" L
T-25V – 15" D x 15.7" L
T-30V – 15" D x 21.1" L
T-42V – 17.7" D x 23.6" L

30573-0000

Replacement Ports: FIG 7953 ACCUMULATOR TANKS
1/2" thread – 30649-1000
(for QEST type fittings)
For 30573-0000 ONLY ACCUMULATOR TANKS reduce pump cycling and eliminate
FIG 116 pulsations and water hammer. Water is separated from air
chamber by a butyl diaphragm in a FDA compliant polypropy-
lene reservoir. Pressurized water volume is approximately 35%
30573-0000 is made of molded ABS plastic and has a capacity of total tank capacity at 30 PSI. Mounts horizontally, vertically,
of approximately 1 quart and dimensions of approximately or upside down. Install as close as possible to the pressure
13-1/4" L x 5" W. 30573-0000 has a precharged 18 psi bladder switch.The greater the volume, the longer the pump cycle.
and can be mounted in any position and will not water log. Tanks are pre-pressurized @ 40 PSI total volume and must be
Also, it INCLUDES snap-in 1/2" hose barbs that can be fine-tuned to 2 PSI below cut-in pressure of pump. Maximum
removed and replaced with 1/2" IPS fitting No. 30649-1000 working pressure 150 PSI. Use with fresh or salt water up to
sold separately. 200°F. Use on cold water side of hot water heaters to prevent
No. Each Hose Size Description "spilling" of relief valves.
30573-0000*$114.35 1/2" Accumulator Tank – Premium No. Each Total Tank Capacity* IPS
30649-1000** 6.95 pr. 1/2" IPS Straight Snap-In Pipe Fittings T5 $102.90 2.1 Gallons 3/4" NPTM
30642-1000 6.95 pr. 3/4" 90° Snap-In Hose Barb T12 139.15 4.8 Gallons 3/4" NPTM
30651-1000 6.95 pr. 1/2" 90° Snap-In Hose Barb T25V 308.20 9.3 Gallons 1" NPTF
30654-1000 6.95 pr. 1/2" Straight Snap-In Hose Barb T30V 424.35 13.2 Gallons 1" NPTF
*Optional Snap-In Fitting for Qest Type Fittings T42V 512.90 21 Gallons 1" NPTF
* WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov * Actual water volume will vary based on PSI.
