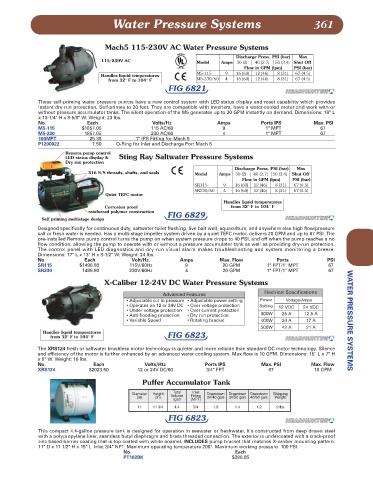

Water Pressure Systems 361

Mach5 115-230V AC Water Pressure Systems

Discharge Press. PSI (bar) Max
115/230V AC
Model Amps 30 (2) 40 (2.7) 50 (3.4) Shut Off
Flow in GPM (lpm) PSI (bar)
M5-115 9 16 (60) 12 (46) 8 (31) 67 (4.5)
Handles liquid temperatures
from 32° F to 104° F M5-230/60 4 16 (60) 12 (46) 8 (31) 67 (4.5)
FIG 6821
These self-priming water pressure pumps have a new control system with LED status display and reset capability which provides
instant dry-run protection. Self-primes to 20 feet. They are compatible with inverters, have a water-cooled motor and work with or
without pressure accumulator tanks. The silent operation of the M5 generates up to 20 GPM instantly on demand. Dimensions: 18" L
x 13-1/4" H x 8-5/8" W. Weight: 23 lbs.
No. Each Volts/Hz Amps Ports IPS Max. PSI
M5-115 $1857.05 115 AC/60 9 1" MPT 67
M5-230 1857.05 230 AC/60 4 1" MPT 67
100MPT 25.35 1" IPS Fitting for Mach 5
P1200022 7.50 O-Ring for Inlet and Discharge Port Mach 5
Remora pump control
LED status display & Sting Ray Saltwater Pressure Systems
Dry run protection
Discharge Press. PSI (bar) Max
316 S/S threads, shafts, and seals Model Amps 30 (2) 40 (2.7) 50 (3.4) Shut Off
Flow in GPM (lpm) PSI (bar)
SR115 9 16 (60) 12 (46) 8 (31) 67 (4.5)
SR230/60 4 16 (60) 12 (46) 8 (31) 67 (4.5)
Quiet TEFC motor
Handles liquid temperatures
Corrosion proof from 32° F to 104° F
reinforced polymer construction
FIG 6829
Self priming multistage design
Designed specifically for continuous duty, saltwater toilet flushing, live bait well, aquaculture, and anywhere else high flow/pressure
salt or fresh water is needed. Has a multi-stage impeller system driven by a quiet TEFC motor, delivers 20 GPM and up to 67 PSI. The
pre-installed Remora pump control turns the pump on when system pressure drops to 40 PSI, and off when the pump reaches a no
flow condition, allowing the pump to operate with or without a pressure accumulator tank as well as providing dry-run protection.
The control panel with LED diagnostics and dry run visual alarm makes troubleshooting and system monitoring a breeze.
Dimensions: 17" L x 13" H x 8-1/2" W. Weight: 24 lbs.
No. Each Volt/Hz. Amps Max. Flow Ports PSI
SR115 $1498.80 115V/60Hz 9 20 GPM 1" FPT/1" MPT 67
SR230 1498.80 230V/60Hz 4 20 GPM 1" FPT/1" MPT 67
X-Caliber 12-24V DC Water Pressure Systems
Electrical Specifications
Advanced Features
• Adjustable cut in pressure • Adjustable power setting Power Voltage/Amps
• Operates on 12 or 24V DC • Over voltage protection Setting 12 VDC 24 VDC
• Under voltage protection • Over current protection
• Anti-flooding protection • Dry run protection 300W 25 A 12.5 A
• Variable Speed • Rotating bracket 400W 34 A 17 A WATER PRESSURE SYSTEMS
500W 42 A 21 A
Handles liquid temperatures
from 32° F to 104° F FIG 6823
The XRS124 fresh or saltwater brushless motor technology is quieter and more reliable than standard DC motor technology. Silence
and efficiency of the motor is further enhanced by an advanced water cooling system. Max flow is 10 GPM. Dimensions: 15" L x 7" H
x 8" W. Weight: 16 lbs.
No. Each Volts/Htz Ports IPS Max. PSI Max. Flow
XRS124 $2023.50 12 or 24V DC/60 3/4" FPT 67 10 GPM
Puffer Accumulator Tank
Total Inlet
Diameter Height Volume Fitting Drawdown Drawdown Drawdown Shipping
(in) (in) 20/40 gals 30/50 gals 40/60 gals Weight
(gal) (MPT)
11 11 3/4 4.4 3/4 1.6 1.4 1.2 9 lbs
FIG 6823
This compact 4.4-gallon pressure tank is designed for operation in seawater or freshwater. It's constructed from deep drawn steel
with a polypropylene liner, seamless butyl diaphragm and brass threaded connection. The exterior is undercoated with a crack-proof
zinc based barrier coating that is top coated with white enamel. INCLUDES pump bracket that matches X-caliber mounting pattern.
11" D x 11 1/2" H x 15" L Inlet 3/4" NPT. Maximum operating temperature 200°. Maximum working pressure 100 PSI.
No. Each
PT102BK $380.85
