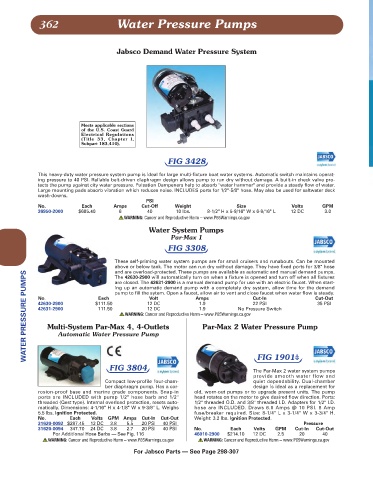

362 Water Pressure Pumps

Jabsco Demand Water Pressure System

Meets applicable sections
of the U.S. Coast Guard
Electrical Regulations
(Title 33, Chapter I,
Subpart 183.410).

FIG 3428

This heavy-duty water pressure system pump is ideal for large multi-fixture boat water systems. Automatic switch maintains operat-
ing pressure to 40 PSI. Reliable belt-driven diaphragm design allows pump to run dry without damage. A built-in check valve pro-
tects the pump against city water pressure. Pulsation Dampeners help to absorb "water hammer" and provide a steady flow of water.
Large mounting pads absorb vibration which reduces noise. INCLUDES ports for 1/2"-5/8" hose. May also be used for saltwater deck
wash-downs.
PSI
No. Each Amps Cut-Off Weight Size Volts GPM
36950-2000 $605.40 6 40 10 lbs. 8-1/2" H x 5-9/16" W x 6-9/16" L 12 DC 3.0
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Water System Pumps
Par-Max 1
FIG 3308

These self-priming water system pumps are for small cruisers and runabouts. Can be mounted
above or below tank. The motor can run dry without damage. They have fixed ports for 3/8" hose
WATER PRESSURE PUMPS No. Multi-System Par-Max 4, 4-Outlets Amps No Pressure Switch Cut-Out
and are overload-protected. These pumps are available as automatic and manual demand pumps.
The 42630-2900 will automatically turn on when a fixture is opened and turn off when all fixtures
are closed. The 42631-2900 is a manual demand pump for use with an electric faucet. When start-
ing up an automatic demand pump with a completely dry system, allow time for the demand
pump to fill the sytem. Open a faucet, allow air to vent and close faucet when water flow is steady.
Each
Cut-In
Volt
35 PSI
1.9
12 DC
$111.50
22 PSI
42630-2900
12 DC
1.9
42631-2900
111.50
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Par-Max 2 Water Pressure Pump
Automatic Water Pressure Pump
FIG 3804 FIG 1901b
The Par-Max 2 water system pumps
provide smooth water flow and
Compact low-profile four-cham- quiet dependability. Dual-chamber
ber diaphragm pump. Has a cor- design is ideal as a replacement for
rosion-proof base and marine grade components. Snap-in old, worn-out pumps or to upgrade present units. The pump
ports are INCLUDED with pump 1/2" hose barb and 1/2" head rotates on the motor to give desired flow direction. Ports:
threaded (Qest type). Internal overload protection, resets auto- 1/2" threaded O.D. and 3/8" threaded I.D. Adapters for 1/2" I.D.
matically. Dimensions: 4-1/16" H x 4-1/8" W x 9-3/8" L. Weighs hose are INCLUDED. Draws 6.0 Amps @ 10 PSI. 8 Amp
5.5 lbs. Ignition Protected. fuse/breaker required. Size: 8-1/4" L x 3-1/4" W x 3-3/4" H.
No. Each Volts GPM Amps Cut-In Cut-Out Weight: 3.2 lbs. Ignition Protected.
31620-0092 $287.45 12 DC 3.8 5.5 20 PSI 40 PSI Pressure
31620-0094 347.70 24 DC 3.8 2.7 20 PSI 40 PSI No. Each Volts GPM Cut-In Cut-Out
For Additional Hose Barbs — See Fig. 116 46010-2900 $214.10 12 DC 2.5 20 40
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
For Jabsco Parts — See Page 298-307
