400 Raritan Repair Kits and Toilet Parts

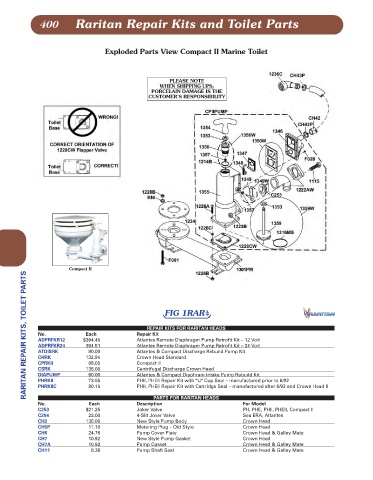

Exploded Parts View Compact II Marine Toilet

PLEASE NOTE
WHEN SHIPPING UPS:
PORCELAIN DAMAGE IS THE
CUSTOMER’S RESPONSIBILITY

Compact II
RARITAN REPAIR KITS, TOILET PARTS

FIG 1RARb

REPAIR KITS FOR RARITAN HEADS
No. Each Repair Kit
ADPRFKR12 $394.45 Atlantes Remote Diaphragm Pump Retrofit Kit – 12 Volt
ADPRFKR24 394.51 Atlantes Remote Diaphragm Pump Retrofit Kit – 24 Volt
ATDISRK 80.00 Atlantes & Compact Discharge Rebuild Pump Kit
CHRK 132.94 Crown Head Standard
CPRKII 88.05 Compact II
CSRK 135.00 Centrifugal Discharge Crown Head
DIAPUMP 60.00 Atlantes & Compact Diaphram Intake Pump Rebuild Kit
PHRKII 73.85 PHII, PHEII Repair Kit with "U" Cup Seal – manufactured prior to 6/92
PHRKIIC 80.15 PHII, PHEII Repair Kit with Cartridge Seal – manufactured after 6/92 and Crown Head II

PARTS FOR RARITAN HEADS
No. Each Description For Model
C253 $21.25 Joker Valve PH, PHE, PHII, PHEII, Compact II
C254 23.00 4-Slit Joker Valve Sea ERA, Atlantes
CH2 135.00 New Style Pump Body Crown Head
CH5P 11.10 Metering Plug – Old Style Crown Head
CH6 24.76 Pump Cover Plate Crown Head & Galley Mate
CH7 10.92 New Style Pump Gasket Crown Head
CH7A 10.92 Pump Gasket Crown Head & Galley Mate
CH11 8.36 Pump Shaft Seal Crown Head & Galley Mate
