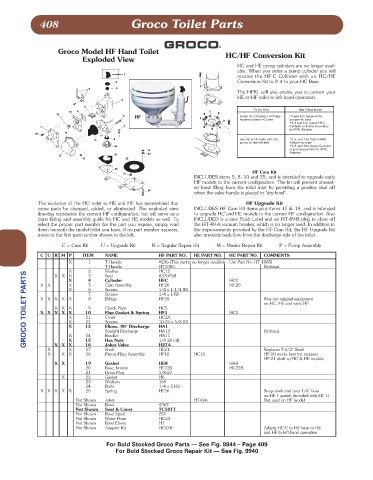

408 Groco Toilet Parts

Groco Model HF Hand Toilet HC/HF Conversion Kit
Exploded View
HC and HE pump cylinders are no longer avail-
able. When you order a pump cylinder you will
1
receive the HF-C Cylinder with an HC/HF
Conversion Kit to fit it to your HC Base.
The HFRL will also enable you to convert your
HE or HF toilet to left-hand operation.

To Do This Use These Holes
HF Install HF-C Cylinder of Pump *4 and 8 to fasten HFRL
Assembly onto HC base adapter to base
*1, 3 and 6 to fasten HF-C
Cylinder or Pump Assembly
to HFRL Adapter
Use HE or HF toilet with the *2, 5, and 7 to fasten HFRL
pump on the left side Adapter to base
*1, 3, and 6 to fasten Cylinder
or pump assembly to HFRL
Adapter

HF Cam Kit
INCLUDES items 5, 8, 10 and 25, and is intended to upgrade early
HF models to the current configuration. The kit will prevent unwant-
ed bowl filling from the toilet inlet by providing a positive shut off
when the valve handle is placed in "dry-bowl".
The evolution of the HC toilet to HE and HF has necessitated that HF Upgrade Kit
some parts be changed, added, or eliminated. The exploded view INCLUDES HF Cam Kit items plus items 17 & 18, and is intended
drawing represents the current HF configuration, but will serve as a to upgrade HC and HE models to the current HF configuration. Also
parts listing and assembly guide for HC and HE models as well. To INCLUDED is a new Flush Label and an HT-49-B plug to close off
select the proper part number for the part you require, simply read the HT-49-A vacuum breaker, which is no longer used. In addition to
down beneath the model toilet you have; if no part number appears, the improvements provided by the HF Cam Kit, the HF Upgrade Kit
move to the first part number shown to the left. also prevents back-flow from the discharge side of the toilet.
C = Cam Kit U = Upgrade Kit R = Regular Repair Kit M = Master Repair Kit P = Pump Assembly

CU R M P ITEM NAME HF PART NO. HE PART NO. HC PART NO. COMMENTS
X 1 T-Handle #236 (This part is no longer available - Use Part No. HT-1085)
T-Handle HT1085 HCC Optional
2
HC12
Washer
X
GROCO TOILET PARTS XX XXX 10 Bridge 1/4 x 1-1/4 RS HC1 Was not original equipment
X
0370758
3
Seal
X
X
HFC
Cylinder
4
X
5
X
HC20
X
HF20
Cam Assembly
X
6
X
Screws
Screws
1/4 x 1 RS
7
X
X
HF28
X
X
8
X
on HC, HE and early HF
X
HC5
Check Plate
9
X
X
HF1
Flap Gasket & Spring
Cover
11
X
HC2A
X
10-24 x 5/8 RS
12
Screws
HA1
Elbow, 90° Discharge
13
X
Straight Discharge
HA11
X
14
Bracket
X
1/4-20 HB
Hex Nuts
16
H27A
Shaft
Replaces 7-1/2" Shaft
17
X XX X 15 Joker Valve HA13 Optional
HF21
X
X X X 18 Piston/Ring Assembly HF10 HC10 HF-10 works best but requires
HF-21 shaft w/HC & HE models
XX 19 Gasket HE8 HA8
20 Base, bronze HF22B HC22B
21 Drain Plug 1/8-27
X 22 Gasket H6
23 Washers 16S
24 Bolts 1/4 x 2 HS
X X X X X 25 Spring HF26 Snap small end over 1/4" boss
on HF-1 gasket (included with HF-1)
Not Shown Joker HT49A Not used on HF model
Not Shown Bowl 4967
Not Shown Seat & Cover TC50TT
Not Shown Bowl Spud ZS1
Not Shown Water Hose HC23
Not Shown Bowl Elbow H7
Not Shown Adapter Kit HC2HF Adapts HC-C to HF base or HE
and HF to left hand operation
For Bold Stocked Groco Parts — See Fig. 9944 – Page 409
For Bold Stocked Groco Repair Kit — See Fig. 9940
