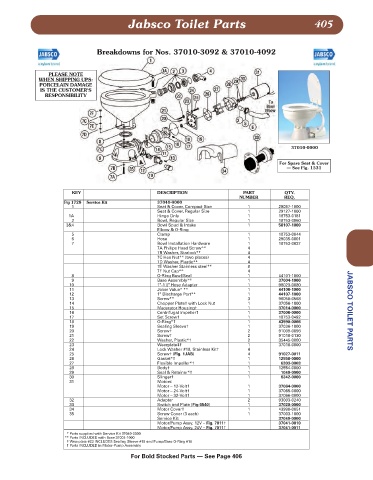

Jabsco Toilet Parts 405

Breakdowns for Nos. 37010-3092 & 37010-4092

PLEASE NOTE
WHEN SHIPPING UPS:
PORCELAIN DAMAGE
IS THE CUSTOMER'S
RESPONSIBILITY

37010-0000

For Spare Seat & Cover
— See Fig. 1531

KEY DESCRIPTION PART QTY.
NUMBER REQ.
Fig 1728 Service Kit 37040-0000
1 Seat & Cover, Compact Size 1 29097-1000
Seat & Cover, Regular Size 1 29127-1000
1A Hinge Only 1 18753-0181
2 Bowl, Regular Size 1 18753-0060
3&4 Bowl Spud & Intake 1 58107-1000
Elbow & O-Ring
5 Clamp 1 18753-0044
6 Hose 1 29035-0001
7 Bowl Installation Hardware 1 18753-0637
7A Philips Head Screw** 4
7B Washer, Starlock** 4
7C Hex Nut** (two places) 4
7D Washer, Plastic** 4
7E Washer Stainless steel** 8
7F Nut Cap** 4
8 O-Ring Bowl/Seal 1 44101-1000
9 Base Assembly** 1 37004-1000
10 1"-1 ⁄2" Hose Adapter 1 98023-0080
1
11 Joker Value* ** 1 44106-1000
12 1" Discharge Port** 1 44107-1000
13 Screw** 3 96050-0568
14 Chopper Plate† with Lock Nut 1 37056-1000
15 Macerator Housing† 1 37014-0000
16 Centrifugal Impeller† 1 37006-0000 JABSCO TOILET PARTS
17 Set Screw† 1 18753-0492
18 O-Ring*† 1 43990-0066
19 Sealing Sleeve† 1 37036-1000
20 Screw† 2 91009-0096
21 Screw† 2 91010-0130
22 Washer, Plastic*† 2 35445-0000
23 Wearplate‡† 1 37018-0000
24 Lock Washer #10, Stainless Kit† 4
25 Screw† (Fig. 1JAB) 4 91027-0011
26 Gasket*† 1 12558-0000
27 Flexible Impeller*† 1 6303-0003
28 Body† 1 12554-0000
29 Seal & Retainer*† 1 1040-0000
30 Slinger† 1 6342-0000
31 Motors:
Motor – 12-Volt† 1 37064-0000
Motor – 24-Volt† 1 37065-0000
Motor – 32-Volt† 1 37066-0000
32 Adapter 2 93003-0240
33 Switch and Plate (Fig 6540) 1 37020-0000
34 Motor Cover† 1 43990-0051
35 Screw Cover (3 each) 1 37003-1000
Service Kit: 37040-0000
Motor/Pump Assy. 12V – Fig. 7011† 37041-0010
Motor/Pump Assy. 24V – Fig. 7011† 37041-0011
* Parts supplied with Service Kit 37040-0000
** Parts INCLUDED with Base 37004-1000
‡ Wearplate #23 INCLUDES Sealing Sleeve #19 and Pump/Base O-Ring #18
† Parts INCLUDED in Motor-Pump Assembly
For Bold Stocked Parts — See Page 406
