Jabsco Toilet Parts 403

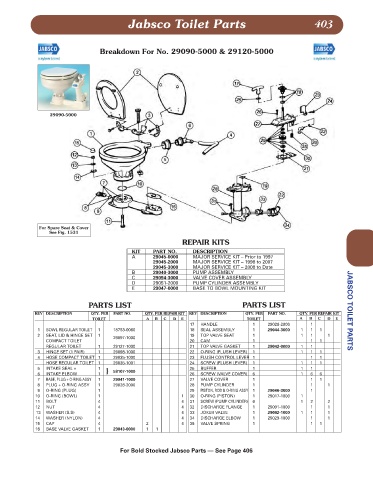

Breakdown For No. 29090-5000 & 29120-5000

29090-5000

For Spare Seat & Cover
See Fig. 1531
REPAIR KITS

KIT PART NO. DESCRIPTION
A 29045-0000 MAJOR SERVICE KIT – Prior to 1997
29045-2000 MAJOR SERVICE KIT – 1998 to 2007
29045-3000 MAJOR SERVICE KIT – 2008 to Date
B 29040-3000 PUMP ASSEMBLY
C 29094-3000 VALVE COVER ASSEMBLY
D 29051-2000 PUMP CYLINDER ASSEMBLY
E 29047-0000 BASE TO BOWL MOUNTING KIT

PARTS LIST PARTS LIST
KEY DESCRIPTION QTY. PER PART NO. QTY. PER REPAIR KIT KEY DESCRIPTION QTY. PER PART NO. QTY. PER REPAIR KIT JABSCO TOILET PARTS
TOILET A B C D E TOILET A B C D E
17 HANDLE 1 29026-2000 1
1 BOWL REGULAR TOILET 1 18753-0060 18 SEAL ASSEMBLY 1 29044-3000 1 1 1
2 SEAT, LID & HINGE SET 1 19 TOP VALVE SEAT 1 1 1 1
29097-1000
COMPACT TOILET 20 CAM 1 1 1
REGULAR TOILET 1 29127-1000 21 TOP VALVE GASKET 1 29042-0000 1 1
3 HINGE SET (1 PAIR) 1 29098-1000 22 O-RING (FLUSH LEVER) 1 1 1 1
4 HOSE COMPACT TOILET 1 29035-1000 23 FLUSH CONTROL LEVER 1 1 1
HOSE REGULAR TOILET 1 29035-1001 24 SCREW (FLUSH LEVER) 1 1 1 1
5 INTAKE SEAL + 1 } 25 BUFFER 1 1 1
6 INTAKE ELBOW 1 58107-1000 26 SCREW (VALVE COVER) 6 1 6 6
7 BASE, PLUG + O-RING ASSY 1 29041-1000 27 VALVE COVER 1 1 1
8 PLUG + O-RING ASSY 1 29028-2000 28 PUMP CYLINDER 1 1 1
9 O-RING (PLUG) 1 29 PISTON, ROD & O-RING ASSY 1 29046-3000 1
10 O-RING (BOWL) 1 1 30 O-RING (PISTON) 1 29017-1000 1
11 BOLT 4 4 31 SCREW (PUMP CYLINDER) 6 1 2 2
12 NUT 4 4 32 DISCHARGE FLANGE 1 29091-1000 1 1
13 WASHER (S.S) 4 4 33 JOKER VALVE 1 29092-1000 1 1 1
14 WASHER (NYLON) 4 4 34 DISCHARGE ELBOW 1 29029-1000 1 1
15 CAP 4 2 4 35 VALVE SPRING 1 1 1
16 BASE VALVE GASKET 1 29043-0000 1 1

For Bold Stocked Jabsco Parts — See Page 406
