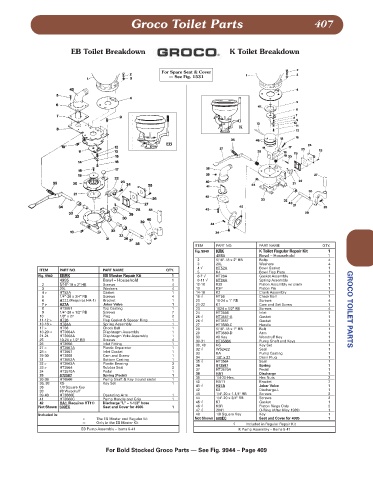

Groco Toilet Parts 407

EB Toilet Breakdown K Toilet Breakdown

For Spare Seat & Cover
— See Fig. 1531

K

EB

ITEM PART NO. PART NAME QTY.
Fig. 9940 KRK K Toilet Regular Repair Kit 1
4985 Bowl – Household 1
2 5/16"-18 x 2" HB Bolts 4
3 20L Washers 4
4 √ HT52A Bowl Gasket 1
ITEM PART NO. PART NAME QTY.
5 K4 Bowl Flap Plate 1
Fig. 9940 EBRK EB Master Repair Kit 1 6-7 √ HT26A Gasket Assembly 1
4985 Bowl – Household 1 8-11 √ HT84A Spring Assembly 1
2 5/16"-18 x 2" HB Screws 4 12-18 K32 Piston Assembly w/ crank 1
3 20L Washers 4 13 K3P Piston Pin 1
4 > HT52A Gasket 1 14-18 K2 Crank Assembly 1
5 1/4"-20 x 3/4" RB Screws 4 19 √ HT56 Check Ball 1
6 HT11 (Requires HA-1) Bracket 1 20 10-24 x 1" RB Screws 4
7 > H27A Joker Valve 1 21-22 K1 Cam and Set Screw 1
8 HT3551 Top Casting 1 23 1024 x 1/2" RB Screws 4 GROCO TOILET PARTS
9 1/4"-20 x 1/2" RB Screws 7 24 HT3556 Inlet 1
10 1/8" x 27 Plug 2 25 √ HT3557-A Gasket 1
11-12 > HT26 Flap Gasket & Spacer Ring 1 26 √ HT3557 Gasket 1
13-16 > HT84A Spring Assembly 1 27 HT3560-C Handle 1
17 > HT56 Check Ball 1 28 5/16"-18 x 1" HB Bolt 1
18-20 ∞ HT3554A Diaphragm Assembly 1 29 HT3560-D Arm 1
21-24 HT3558A Diaphragm Yoke Assembly 1 30 #8 Key Woodruff Key 1
25 10-24 x 1/2" RB Screws 4 30-31 HT6566K Pump Shaft and Keys 1
26 HT3556 Inlet Fitting 1 30, 48 KS Key Set 1
27 > HT3557A Plastic Separator 1 32 √ WS2422 Seal 1
28 > HT3557 Inlet Gasket 1 33 KA Pump Casting 1
29-30 HT3559 Cam and Screw 1 34 1/8" x 27 Drain Plug 1
31 HT3552A Bottom Casting 1
32 > HT3563A Plastic Bearing 3 35 √ HT3564 Seal 1 1
36
S72587
Spring
33 > HT3564 Rubber Seal 2 37 HT3570A Pedal 1
34 HT3570A Pedal 1
35 S72587 Spring (Pedal) 1 38 HA1 Discharge 1
36-38 HT6566 Pump Shaft & Key (round ends) 1 39 1/4-20-Hex. Hex Nuts 2
36, 38 KS Key Set 1 40 HA11 Bracket 2
36 1/8 Square Key 41 √ H27A Joker Valve 1
38 #8 Woodruff 42 K8 Discharge-L 1
39-40 HT3560E Operating Arm 1 43 1/4"-20 x 1-1/4" RB Screws 2
41 HT3560C Pump Handle and Grip 1 44 1/4"-20 x 3/4" RB Screws 2
42 HA1 (Requires HT11) Discharge "L" – 1-1/2" hose 45 √ K7 Gasket 1
Not Shown 500EC Seat and Cover for 4985 1 46 √ K3R Piston Rings Only 2
47 √ 2041 O-Ring (After May 1989) 1
Included in: 48 1/8 Square Key Key 1
> The EB Master and Regular Kit Not Shown 500EC Seat and Cover for 4985 1
∞ Only in the EB Master Kit
√ Included in Regular Repair Kit
EB Pump Assembly – Items 5-41 K Pump Assembly – Items 5-47
For Bold Stocked Groco Parts — See Fig. 9944 – Page 409
