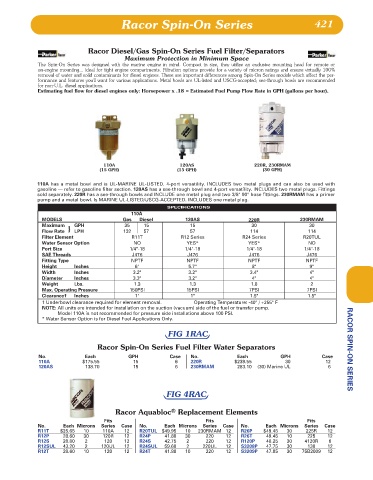

Page 422 - Lewis

Racor Spin-On Series 421

Racor Diesel/Gas Spin-On Series Fuel Filter/Separators
Maximum Protection in Minimum Space
The Spin-On Series was designed with the marine engine in mind. Compact in size, they utilize an exclusive mounting head for remote or
on-engine mounting... ideal for tight engine compartments. Filtration options provide for a variety of micron ratings and ensure virtually 100%
removal of water and solid contaminants for diesel engines. There are important differences among Spin-On Series models which affect the per-
formance and features you'll want for various applications. Metal bowls are UL-listed and USCG-accepted; see-through bowls are recommended
for non-U.L. diesel applications.
Estimating fuel flow for diesel engines only: Horsepower x .18 = Estimated Fuel Pump Flow Rate in GPH (gallons per hour).

110A 120AS 220R, 230RMAM
(15 GPH) (15 GPH) (30 GPH)
110A has a metal bowl and is UL-MARINE UL-LISTED. 4-port versatility. INCLUDES two metal plugs and can also be used with
gasoline — refer to gasoline filter section. 120AS has a see-through bowl and 4-port versatility. INCLUDES two metal plugs. Fittings
sold separately. 220R has a see-through bowls and INCLUDE one metal plug and two 3/8" 90° hose fittings. 230RMAM has a primer
pump and a metal bowl. Is MARINE UL-LISTED/USCG-ACCEPTED. INCLUDES one metal plug.
SPECIFICATIONS
110A
MODELS Gas Diesel 120AS 220R 230RMAM
Maximum } GPH 35 15 15 30 30
Flow Rate LPH 132 57 57 114 114
Filter Element R11T R12 Series R24 Series R20TUL
Water Sensor Option NO YES* YES* NO
Port Size 1/4"-18 1/4"-18 1/4"-18 1/4"-18
SAE Threads J476 J476 J476 J476
Fitting Type NPTF NPTF NPTF NPTF
Height Inches 6" 5.7" 8" 9"
Width Inches 3.2" 3.2" 3.4" 4"
Diameter Inches 3.3" 3.2" 4" 4"
Weight Lbs. 1.3 1.3 1.8 2
Max. Operating Pressure 150PSI 15PSI 7PSI 7PSI
Clearance† Inches 1" 1" 1.5" 1.5"
† Underbowl clearance required for element removal. Operating Temperature: -40° / +255° F
NOTE: All units are intended for installation on the suction (vacuum) side of the fuel or transfer pump.
Model 110A is not recommended for pressure side installations above 100 PSI.
* Water Sensor Option is for Diesel Fuel Applications Only.

FIG 1RAC

Racor Spin-On Series Fuel Filter Water Separators RACOR SPIN-ON SERIES
No. Each GPH Case No. Each GPH Case
110A $175.55 15 6 220R $239.55 30 12
120AS 138.70 15 6 230RMAM 283.10 (30) Marine UL 6

FIG 4RAC

®
Racor Aquabloc Replacement Elements
Fits Fits Fits
No. Each Microns Series Case No. Each Microns Series Case No. Each Microns Series Case
R11T $25.65 10 110A 12 R20TUL $49.95 10 230RMAM 12 R26P $49.45 30 225R 12
R12P 28.60 30 120R 12 R24P 41.80 30 220 12 R26T 49.45 10 225 12
R12S 28.80 2 120 12 R24S 42.75 2 220 12 R120P 48.25 30 4120R 6
R12SUL 43.20 2 120UL 12 R24SUL 59.60 2 220UL 12 S3208P 47.75 30 130 12
R12T 28.60 10 120 12 R24T 41.80 10 220 12 S3209P 47.85 30 75B2009 12
