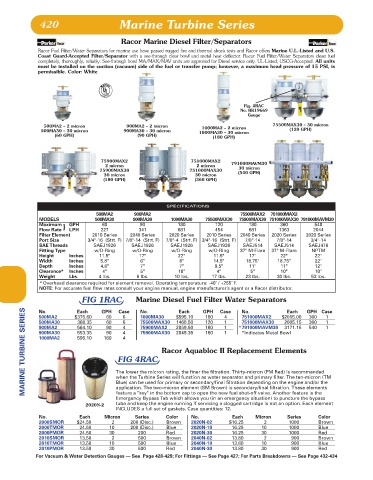

420 Marine Turbine Series

Racor Marine Diesel Filter/Separators
Racor Fuel Filter/Water Separators for marine use have passed rugged fire and thermal shock tests and Racor offers Marine U.L.-Listed and U.S.
Coast Guard-Accepted Filter/Separator with a see-through clear bowl and metal heat deflector. Racor Fuel Filter/Water Separators clean fuel
completely, thoroughly, reliably. See-through bowl MA/MAX/MAV units are approved for Diesel service only. UL-Listed, USCG-Accepted. All units
must be installed on the suction (vacuum) side of the fuel or transfer pump; however, a maximum head pressure of 15 PSI, is
permissible. Color: White

Fig. 4RAC
No. RK19669
Gauge
500MA2 – 2 micron 900MA2 – 2 micron 1000MA2 – 2 micron 75500MAX30 – 30 micron
500MA30 – 30 micron 900MA30 – 30 micron 1000MA30 – 30 micron (120 GPH)
(60 GPH) (90 GPH)
(180 GPH)

75900MAX2 751000MAX2 791000MAVM30
2 micron 2 micron
30 micron
75900MAX30 751000MAX30 (540 GPH)
30 micron 30 micron
(180 GPH) (360 GPH)

SPECIFICATIONS
500MA2 900MA2 75900MAX2 751000MAX2
MODELS 500MA30 900MA30 1000MA30 75500MAX30 75900MAX30 751000MAX30 791000MAVM30
Maximum } GPH 60 90 180 120 180 360 540
Flow Rate LPH 227 341 681 454 681 1363 2044
Filter Element 2010 Series 2040 Series 2020 Series 2010 Series 2040 Series 2020 Series 2020 Series
Port Size 3/4"-16 (Strt. F) 7/8"-14 (Strt. F) 7/8"-4 (Strt. F) 3/4"-16 (Strt. F) 7/8"-14 7/8"-14 3/4"-14
SAE Threads SAEJ1926 SAEJ1926 SAEJ1926 SAEJ1926 SAEJ514 SAEJ514 SAEJ476
Fitting Type w/O-Ring w/O-Ring w/O-Ring w/O-Ring 37° M-Flare 37° M-Flare NPTM
Height Inches 11.5" 17" 22" 11.5" 17" 22" 22"
Width Inches 5.8" 6" 6" 14.5" 18.75" 18.75" 22"
Depth Inches 4.8" 7" 7" 9.5" 11" 11" 12"
Clearance* Inches 4" 5" 10" 4" 5" 10" 10"
Weight Lbs. 4 lbs. 6 lbs. 10 lbs. 17 lbs. 23 lbs. 30 lbs. 53 lbs.
* Overhead clearance required for element removal. Operating temperature: -40˚ / +255˚ F.
NOTE: For accurate fuel flow rates consult your engine manual, engine manufacturer’s agent or a Racor distributor.

FIG 1RAC 6 Marine Diesel Fuel Filter Water Separators 2005.15 GPH Case
MARINE TURBINE SERIES 900MA2 564.10 180 The lower the micron rating, the finer the filtration. Thirty-micron (PM Red) is recommended 1
GPH
Case
No.
No.
Case
Each
Each
No.
Each
GPH
$595.10
751000MAX2
360
1
4
$375.60
500MA2
1000MA30
$2055.00
60
180
120
500MA30
6
360
60
368.35
751000MAX30
1
1
1468.50
75500MAX30
180
2059.50
90
*
791000MAVM30
540
3171.15
4
75900MAX2
1
1
180
*Indicates Metal Bowl
90
4
900MA30
553.35
75900MAX30
2049.35
595.10
1000MA2
4
Racor Aquabloc II Replacement Elements
FIG 4RAC
when the Turbine Series will function as water separator and primary filter. The ten-micron (TM
Blue) can be used for primary or secondary/final filtration depending on the engine and/or the
application. The two-micron element (SM Brown) is secondary/final filtration. These elements
feature a "key" in the bottom cap to open the new fuel shut-off valve. Another feature is the
Emergency Bypass Tab which allows you (in an emergency situation) to puncture the bypass
2020N-2 tube and keep the engine running if servicing a clogged cartridge is not an option. Each element
INCLUDES a full set of gaskets. Case quantities: 12.
No. Each Micron Series Color No. Each Micron Series Color
2000SMOR $24.50 2 200 (Disc.) Brown 2020N-02 $16.25 2 1000 Brown
2000TMOR 24.50 10 200 (Disc.) Blue 2020N-10 16.25 10 1000 Blue
2000PMOR 24.50 30 200 Red 2020N-30 16.25 30 1000 Red
2010SMOR 13.50 2 500 Brown 2040N-02 13.80 2 900 Brown
2010TMOR 13.50 10 500 Blue 2040N-10 13.80 10 900 Blue
2010PMOR 13.50 30 500 Red 2040N-30 13.80 30 900 Red
For Vacuum & Water Detection Gauges — See Page 428-429; For Fittings — See Page 427; For Parts Breakdowns — See Page 432-434
