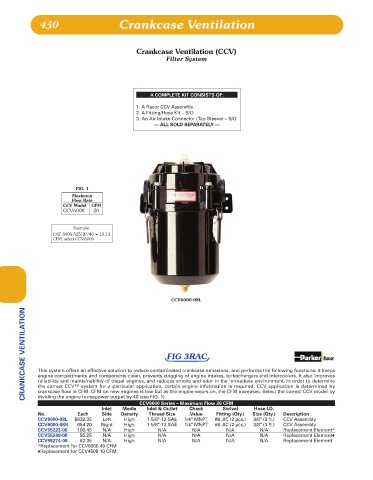

Page 431 - Lewis

430 Crankcase Ventilation

Crankcase Ventilation (CCV)
Filter System

A COMPLETE KIT CONSISTS OF:
1. A Racor CCV Assembly
2. A Fitting/Hose Kit – S/O
3. An Air Intake Connector (Tap Sleeve) – S/O
— ALL SOLD SEPARATELY —

FIG. 1
Maximum
Flow Rate
CCV Model CFM
CCV6000 20

Example:
CAT 3406-525HP/40 = 13.13
CFM, select CCV6000

CCV6000-08L
CRANKCASE VENTILATION This system offers an effective solution to reduce contaminated crankcase emissions, and performs the following functions: it keeps

FIG 3RAC

engine compartments and components clean, prevents clogging of engine intakes, turbochargers and intercoolers. It also improves
reliability and maintainability of diesel engines, and reduces smoke and odor in the immediate environment. In order to determine
the correct CCV™ system for a particular application, certain engine information is required. CCV application is determined by
crankcase flow in CFM. CFM on new engines is low but as the engine wears on, the CFM increases. Select the correct CCV model by
dividing the engine horsepower output by 40 (see FIG. 1).
CCV6000 Series – Maximum Flow 20 CFM
Inlet Media Inlet & Outlet Check Swivel Hose I.D.
No. Each Side Density Thread Size Value Fitting (Qty.) Size (Qty.) Description
CCV6000-08L $632.35 Left High 1-5/8"-12 SAE 1/4" MNPT #6 JIC (2 pcs.) 3/8" (3 ft.) CCV Assembly
CCV6000-08R 654.20 Right High 1-5/8"-12 SAE 1/4" MNPT #6 JIC (2 pcs.) 3/8" (3 ft.) CCV Assembly
CCV55222-08 100.45 N/A High N/A N/A N/A N/A Replacement Element*
CCV55248-08 55.25 N/A High N/A N/A N/A N/A Replacement Element©
CCV55274-08 82.35 N/A High N/A N/A N/A N/A Replacement Element
*Replacement for CCV8000 40 CFM
©Replacement for CCV4500 10 CFM
