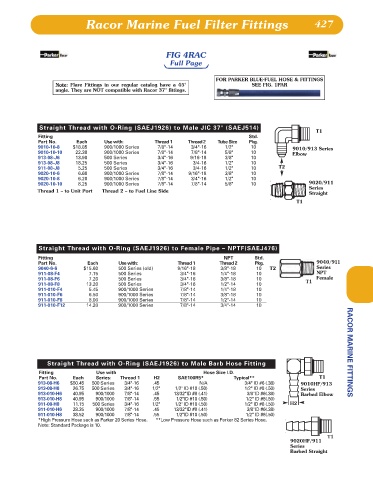

Racor Marine Fuel Filter Fittings 427

FIG 4RAC
Full Page

FOR PARKER BLUE-FUEL HOSE & FITTINGS
Note: Flare Fittings in our regular catalog have a 45° SEE FIG. 1PAR
angle. They are NOT compatible with Racor 37° fittings.

Straight Thread with O-Ring (SAEJ1926) to Male JIC 37° (SAEJ514)
T1
Fitting Std.
Part No. Each Use with: Thread 1 Thread 2 Tube Size Pkg.
9010-10-8 $18.85 900/1000 Series 7/8"-14 3/4"-16 1/2" 10 9010/913 Series
9010-10-10 22.30 900/1000 Series 7/8"-14 7/8"-14 5/8" 10 Elbow
913-08-J6 13.90 500 Series 3/4"-16 9/16-18 3/8" 10
913-08-J8 18.25 500 Series 3/4"-16 3/4-16 1/2" 10
911-08-J8 5.25 500 Series 3/4"-16 3/4-16 1/2" 10 T2
9020-10-6 6.60 900/1000 Series 7/8"-14 9/16"-18 3/8" 10
9020-10-8 6.20 900/1000 Series 7/8"-14 3/4"-16 1/2" 10
9020-10-10 8.25 900/1000 Series 7/8"-14 7/8"-14 5/8" 10 9020/911
Series
Thread 1 – to Unit Port Thread 2 – to Fuel Line Side
Straight
T1

Straight Thread with O-Ring (SAEJ1926) to Female Pipe – NPTF(SAEJ476)
Fitting NPT Std.
Part No. Each Use with: Thread 1 Thread 2 Pkg. 9040/911
9040-6-6 $15.60 500 Series (old) 9/16"-18 3/8"-18 10 T2 Series
911-08-F4 7.15 500 Series 3/4"-16 1/4"-18 10 NPT
911-08-F6 7.20 500 Series 3/4"-16 3/8"-18 10 Female
911-08-F8 13.20 500 Series 3/4"-16 1/2"-14 10 T1
911-010-F4 5.45 900/1000 Series 7/8"-14 1/4"-18 10
911-010-F6 6.50 900/1000 Series 7/8"-14 3/8"-18 10
911-010-F8 8.00 900/1000 Series 7/8"-14 1/2"-14 10
911-010-F12 14.20 900/1000 Series 7/8"-14 3/4"-14 10

Straight Thread with O-Ring (SAEJ1926) to Male Barb Hose Fitting RACOR MARINE FITTINGS
Fitting Use with Hose Size I.D.
Part No. Each Series: Thread 1 H2 SAE100R5* Typical** T1
913-08-H6 $50.45 500 Series 3/4"-16 .45 N/A 3/4" ID #6 (.38) 9010HF/913
913-08-H8 26.75 500 Series 3/4"-16 1/2" 1/2" ID #10 (.50) 1/2" ID #8 (.50) Series
913-010-H6 40.95 900/1000 7/8"-14 .45 13/32"ID #8 (.41) 3/8"ID #6(.38) Barbed Elbow
913-010-H8 40.95 900/1000 7/8"-14 .55 1/2"ID #10 (.50) 1/2" ID #8(.50)
911-08-H8 11.15 500 Series 3/4"-16 1/2" 1/2" ID #10 (.50) 1/2" ID #8 (.50) H2
911-010-H6 28.35 900/1000 7/8"-14 .45 13/32"ID #8 (.41) 3/8"ID #6(.38)
911-010-H8 38.52 900/1000 7/8"-14 .55 1/2"ID #10 (.50) 1/2" ID #8(.50)
*High Pressure Hose such as Parker 20 Series Hose. **Low Pressure Hose such as Parker 82 Series Hose.
Note: Standard Package is 10.

T1
9020HF/911
Series
Barbed Straight
