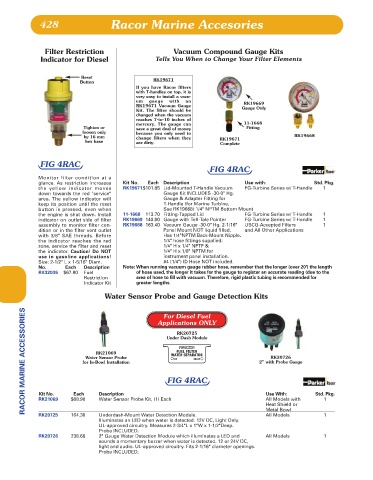

Page 429 - Lewis

428 Racor Marine Accesories

Filter Restriction Vacuum Compound Gauge Kits
Indicator for Diesel Tells You When to Change Your Filter Elements

Reset
Button RK19671
If you have Racor filters
with T-handles on top, it is
very easy to install a vacu-
um gauge with an RK19669
RK19671 Vacuum Gauge Gauge Only
Kit. The filter should be
changed when the vacuum
reaches 7-to-10 inches of
mercury. The gauge can 11-1668
Tighten or save a great deal of money Fitting
loosen only because you only need to
by 16 mm change filters when they RK19671 RK19668
hex base are dirty. Complete

FIG 4RAC
FIG 4RAC
Monitor filter condition at a
glance. As restriction increases Kit No. Each Description Use with: Std. Pkg.
the yellow indicator moves RK19671$101.85 Lid-Mounted T-Handle Vacuum FG-Turbine Series w/ T-Handle 1
down towards the red "service" Gauge Kit INCLUDES -30-0" Hg.
area. The yellow indicator will Gauge & Adapter Fitting for
keep its position until the reset T-Handle (for Marine Turbine,
button is pressed, even when See RK19668) 1/4" NPTM Bottom Mount
the engine is shut down. Install 11-1668 113.70 Fitting-Tapped Lid FG-Turbine Series w/ T-Handle 1
indicator on outlet side of filter RK19669 140.90 Gauge with Tell-Tale Pointer FG-Turbine Series w/ T-Handle 1
assembly to monitor filter con- RK19668 163.40 Vacuum Gauge -30-0" Hg. 2-1/16" USCG-Accepted Filters 1
dition or in the filter vent outlet Panel Mount NOT liquid filled. and All Other Applications
with 3/8" SAE threads. Before Has 1/4"NPTM Back-Mount Nipple.
the indicator reaches the red 1/4" hose fittings supplied:
zone, service the filter and reset 1/4" H x 1/4" NPTF &
the indicator. Caution! Do NOT 1/4" H x 1/8" NPTM for
use in gasoline applications! instrument panel installation.
Size: 2-1/2" L x 1-5/16" Diam. #4 (1/4") ID Hose NOT included.
No. Each Description Note: When running vacuum gauge rubber hose, remember that the longer (over 20') the length
RK32036 $67.80 Fuel of hose used, the longer it takes for the gauge to register an accurate reading (due to the
Restriction area of hose to fill with vacuum. Therefore, rigid plastic tubing is recommended for
Indicator Kit greater lengths.

Water Sensor Probe and Gauge Detection Kits

RACOR MARINE ACCESSORIES
For Diesel Fuel
Applications ONLY
RK20725
Under Dash Module

RK21069
Water Sensor Probe RK20726
for In-Bowl Installation 2” with Probe Gauge

FIG 4RAC

Kit No. Each Description Use With: Std. Pkg.
RK21069 $68.90 Water Sensor Probe Kit, (1) Each All Models with 1
Heat Shield or
Metal Bowl
RK20725 164.30 Underdash-Mount Water Detection Module. All Models 1
Illuminates an LED when water is detected. 12V DC, Light Only.
UL-approved circuitry. Measures 2-3/4"L x 1"W x 1-1/2"Deep.
Probe INCLUDED.
RK20726 238.60 2" Gauge Water Detection Module which illuminates a LED and All Models 1
sounds a momentary buzzer when water is detected. 12 or 24V DC,
light and audio. UL-approved circuitry. Fits 2-1/16" diameter openings.
Probe INCLUDED.
