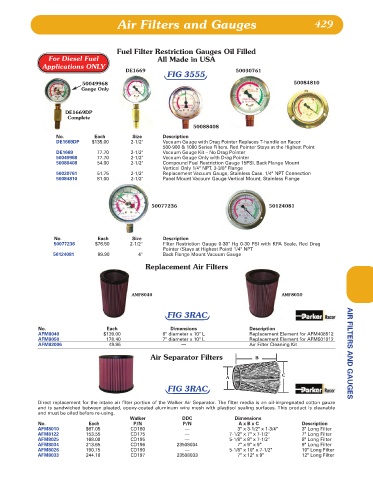

Page 430 - Lewis

Air Filters and Gauges 429

Fuel Filter Restriction Gauges Oil Filled
For Diesel Fuel All Made in USA
Applications ONLY
DE1669 50030761
FIG 3555
50049968 50084810
Gauge Only

DE1669DP
Complete
50088408
No. Each Size Description
DE1669DP $135.00 2-1/2" Vacuum Gauge with Drag Pointer Replaces T-handle on Racor
500-900 & 1000 Series Filters. Red Pointer Stays at the Highest Point
DE1669 77.70 2-1/2" Vacuum Gauge Kit – No Drag Pointer
50049968 77.70 2-1/2" Vacuum Gauge Only with Drag Pointer
50088408 54.00 2-1/2" Compound Fuel Restriction Gauge 15PSI, Back Flange Mount
Vertical Only 1/4" NPT, 3-3/8" Flange
50030761 51.75 2-1/2" Replacement Vacuum Gauge, Stainless Case. 1/4" NPT Connection
50084810 81.00 2-1/2" Panel Mount Vacuum Gauge Vertical Mount, Stainless Flange

50077236 50124081

No. Each Size Description
50077236 $76.50 2-1/2" Filter Restriction Gauge 0-30" Hg 0-30 PSI with KPA Scale, Red Drag
Pointer (Stays at Highest Point) 1/4" NPT
50124081 99.90 4" Back Flange Mount Vacuum Gauge

Replacement Air Filters

AMF8040 AMF8050

FIG 3RAC

No. Each Dimensions Description
AFM8040 $139.00 6" diameter x 10" L Replacement Element for AFM408512
AFM8050 178.40 7" diameter x 10" L Replacement Element for AFM501012
AFM82006 49.95 — Air Filter Cleaning Kit

Air Separator Filters B AIR FILTERS AND GAUGES

C
A
FIG 3RAC

Direct replacement for the intake air filter portion of the Walker Air Separator. The filter media is an oil-impregnated cotton gauze
and is sandwiched between pleated, epoxy-coated aluminum wire mesh with plastisol sealing surfaces. This product is cleanable
and must be oiled before re-using.
Walker DDC Dimensions
No. Each P/N P/N A x B x C Description
AFM8010 $67.05 CD180 — 3" x 3-1/2" x 1-3/4" 3" Long Filter
AFM8122 153.55 CD175 — 7-1/2" x 7" x 7-1/2" 7" Long Filter
AFM8025 168.00 CD195 — 5-1/8" x 8" x 7-1/2" 8" Long Filter
AFM8034 213.65 CD196 23508034 7" x 9" x 9" 9" Long Filter
AFM8026 190.75 CD190 — 5-1/8" x 10" x 7-1/2" 10" Long Filter
AFM8033 244.10 CD197 23508033 7" x 12" x 9" 12" Long Filter
