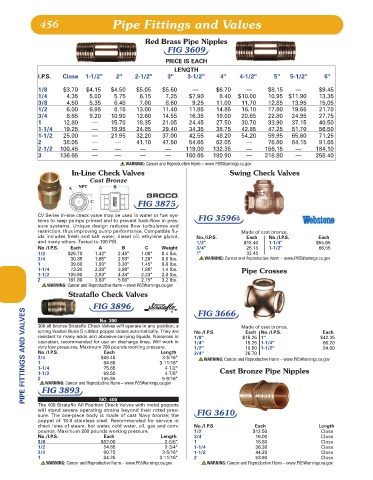

456 Pipe Fittings and Valves

Red Brass Pipe Nipples
FIG 3609
PRICE IS EACH
LENGTH
I.P.S. Close 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6"
1/8 $3.70 $4.15 $4.50 $5.05 $5.50 — $6.70 — $8.15 — $9.45
1/4 4.35 5.00 5.75 6.15 7.25 $7.90 8.40 $10.00 10.95 $11.90 13.35
3/8 4.50 5.35 6.45 7.00 8.60 9.25 11.00 11.70 12.85 13.95 15.05
1/2 6.00 6.95 8.15 13.00 11.40 11.85 14.85 16.10 17.80 19.55 21.70
3/4 8.65 9.20 10.90 12.60 14.55 16.35 19.00 20.65 22.80 24.95 27.75
1 12.80 — 15.70 18.35 21.05 24.45 27.50 30.70 33.90 37.15 40.50
1-1/4 19.25 — 19.95 24.85 29.40 34.35 38.75 42.85 47.25 51.70 56.50
1-1/2 25.00 — 21.95 32.20 37.00 42.55 48.20 54.20 59.95 65.60 71.25
2 38.05 — — 41.10 47.50 54.65 62.05 — 76.80 84.15 91.65
2-1/2 100.45 — — — — 119.00 132.35 — 156.15 — 184.10
3 136.65 — — — — 160.65 180.90 — 218.80 — 258.40
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
In-Line Check Valves Swing Check Valves
Cast Bronze
NPT B
A
C
FIG 3875
CV Series in-line check valve may be used in water or fuel sys-
tems to keep pumps primed and to prevent back-flow in pres- FIG 3596b
sure systems. Unique design reduces flow turbulence and
restriction, thus improving pump performance. Compatible flu- Made of cast bronze.
ids includes fresh and salt water, diesel oil, ethylene glycol, No./I.P.S. Each No./I.P.S. Each
and many others. Tested to 100 PSI. 1/2" $18.40 1-1/4" $55.65
No./I.P.S. Each A B C Weight 3/4" 26.15 1-1/2" 66.55
1/2 $25.70 1.42" 2.45" 1.00" 0.4 lbs. 1" 32.45
3/4 30.35 1.65" 2.58" 1.20" 0.5 lbs. WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
1 39.60 1.90" 3.30" 1.45" 0.8 lbs.
1-1/4 73.35 2.38" 3.98" 1.88" 1.4 lbs. Pipe Crosses
1-1/2 105.90 2.93" 4.34" 2.23" 2.3 lbs.
2 161.80 3.63" 5.00" 2.75" 3.2 lbs.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Strataflo Check Valves
FIG 3896 FIG 3666 Made of cast bronze.
PIPE FITTINGS AND VALVES spring loaded Buna S rubber poppet closes automatically. They are No./I.P.S. Cast Bronze Pipe Nipples $42.35
No. 300
300 all bronze Strataflo Check Valves will operate in any position, a
Each
Each No./I.P.S.
resistant to many acids and abrasive-carrying liquids. Noiseless in
1/8"
$15.25 1"
operation, recommended for use on discharge lines. Will work in
66.20
15.25 1-1/4"
1/4"
very low pressures. Maximum 200 pounds working pressure.
84.60
18.50 1-1/2"
1/2"
Each
No./I.P.S.
Length
3/4"
26.70
3/4
3-5/16"
$48.45
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
1
3-11/16"
64.65
4-1/2"
1-1/4
75.65
1-1/2
99.50
4-7/8"
2
155.65
5-9/16"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
FIG 3893
NO. 400
The 400 Strataflo All Position Check Valves with metal poppets
will stand severe operating strains beyond their rated pres- FIG 3610
sure. The one-piece body is made of cast Navy bronze; the
poppet of 18-8 stainless steel. Recommended for service in
check lines of steam, hot water, cold water, oil, gas and com- No./I.P.S Each Length
pounds. Maximum 200 pounds working pressure. 1/2 $12.50 Close
No./I.P.S. Each Length 3/4 16.00 Close
3/8 $52.00 2-5/8" 1 18.80 Close
1/2 54.85 2-3/4" 1-1/4 36.30 Close
3/4 60.75 3-5/16" 1-1/2 44.20 Close
1 84.25 3-11/16" 2 53.90 Close
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
