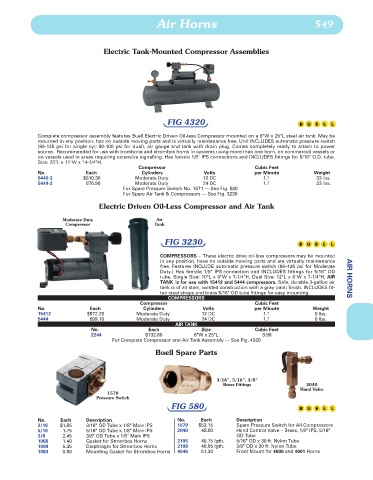

Air Horns                                            549




                                    Electric Tank-Mounted Compressor Assemblies













                                                         FIG 4320

              Complete compressor assembly features Buell Electric Driven Oil-less Compressor mounted on a 6"W x 25"L steel air tank. May be
              mounted in any position, has no outside moving parts and is virtually maintenance free. Unit INCLUDES automatic pressure switch
              (95-125 psi for single cyl; 80-100 psi for dual), air gauge and tank with drain plug. Comes completely ready to attach to power
              source.  Recommended for use with trombone and strombos horns in systems using more than one horn, on commercial vessels or
              on vessels used in areas requiring extensive signalling. Has female 1/8" IPS connections and INCLUDES fittings for 5/16" O.D. tube.
              Size: 25"L x 11"W x 14-1/4"H.
                                                Compressor                             Cubic Feet
              No.             Each               Cylinders            Volts            per Minute          Weight
              5440-3         $810.30           Moderate Duty          12 DC               1.1               33 lbs.
              5444-3          876.90           Moderate Duty          24 DC               1.1               33 lbs.
                                           For Spare Pressure Switch No. 1571 — See Fig. 580
                                           For Spare Air Tank & Compressors — See Fig. 3230

                                  Electric Driven Oil-Less Compressor and Air Tank

                      Moderate Duty                   Air
                       Compressor                    Tank

                                                         FIG 3230


                                                       COMPRESSORS – These electric drive oil-less compressors may be mounted
                                                       in any position, have no outside moving parts and are virtually maintenance
                                                       free. Features INCLUDE automatic pressure switch (95–125 psi for Moderate
                                                       Duty.) Has female 1/8" IPS connection and INCLUDES fittings for 5/16" OD
                                                       tube. Single Size: 10"L x 6"W x 7-1/4"H. Dual Size: 12"L x 6"W x 7-1/4"H. AIR  AIR HORNS
                                                       TANK is for use with 15412 and 5444 compressors. Safe, durable 3-gallon air
                                                       tank is of all steel, welded construction with a gray paint finish. INCLUDES fit-
                                                       ted steel straps and brass 5/16" OD tube fittings for easy mounting.
                                                          COMPRESSORS
                                                Compressor                             Cubic Feet
              No.              Each              Cylinders           Volts             per Minute          Weight
              15412           $572.20          Moderate Duty         12 DC                1.1              8 lbs.
              5444             699.10          Moderate Duty         24 DC                1.1              8 lbs.
                                                            AIR TANK
                                No.                Each              Size              Cubic Feet
                                2244              $132.80          6"W x 25"L             3.96
                                       For Complete Compressor and Air Tank Assembly — See Fig. 4320

                                                      Buell Spare Parts




                                                                          3/16", 5/16", 3/8"
                                                                            Brass Fittings              2040
                                                                                                      Hand Valve
                                     1570
                                  Pressure Switch
                                                           FIG 580

              No.    Each     Description                    No.     Each        Description
              3/16   $1.85    3/16" OD Tube x 1/8" Male IPS  1570   $53.15       Spare Pressure Switch for All Compressors
              5/16    1.75    5/16" OD Tube x 1/8" Male IPS  2040    48.00       Hand Control Valve – Brass, 1/8" IPS, 5/16"
              3/8     2.45    3/8" OD Tube x 1/8" Male IPS                       OD Tube
              1068    1.40    Gasket for Strombos Horns      2105    40.75 lgth.  5/16" OD x 30 ft. Nylon Tube
              1069    5.35    Diaphragm for Strombos Horns   2108    48.85 lgth.  3/8" OD x 30 ft. Nylon Tube
              1083    0.80    Mounting Gasket for Strombos Horns  4546  51.30    Front Mount for 4600 and 4601 Horns
