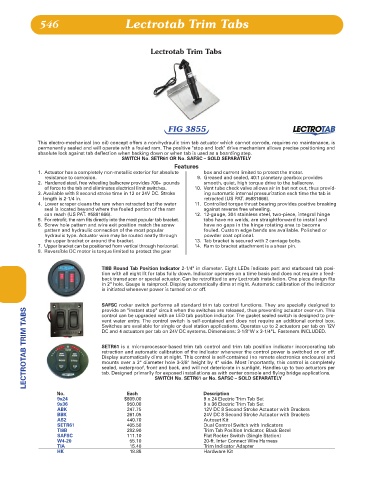

546 Lectrotab Trim Tabs

Lectrotab Trim Tabs

FIG 3855

This electro-mechanical (no oil) concept offers a non-hydraulic trim tab actuator which cannot corrode, requires no maintenance, is
permanently sealed and will operate with a fouled ram. The positive "stop and lock" drive mechanism allows precise positioning and
absolute lock against tab deflection when backing down or when tab is used as a boarding step.
SWITCH No. SETR61 OR No. SAFSC – SOLD SEPARATELY
Features
1. Actuator has a completely non-metallic exterior for absolute box and current limited to protect the motor.
resistance to corrosion. 9. Greased and sealed, 40:1 planetary gearbox provides
2. Hardened steel, free wheeling ballscrew provides 700+ pounds smooth, quiet, high torque drive to the ballscrew.
of force to the tab and eliminates electrical limit switches. 10. Vent tube check valve allows air in but not out, thus provid-
3. Available with 8 second stroke time in 12 or 24V DC. Stroke ing automatic internal pressurization each time the tab is
length is 2-1/4 in. retracted (US PAT. #5881666).
4. Lower scraper cleans the ram when retracted but the water 11. Controlled torque thrust bearing provides positive breaking
seal is located beyond where the fouled portion of the ram against reverse free wheeling.
can reach (US PAT. #5881666). 12. 12-gauge, 304 stainless steel, two-piece, integral hinge
5. For retrofit, the ram fits directly into the most popular tab bracket. tabs have no welds, are straightforward to install and
6. Screw hole pattern and wire exit position match the screw have no gaps in the hinge rotating area to become
pattern and hydraulic connection of the most popular fouled. Custom edge bends are available. Polished or
hydraulic type. Actuator wire may be routed neatly through powder coat optional.
the upper bracket or around the bracket. 13. Tab bracket is secured with 2 carriage bolts.
7. Upper bracket can be positioned from vertical through horizontal. 14. Ram to bracket attachment is a shear pin.
8. Reversible DC motor is torque limited to protect the gear

TI8B Round Tab Position Indicator 2-1/4" in diameter. Eight LEDs indicate port and starboard tab posi-
tion with all eight lit for tabs fully down. Indicator operates on a time basis and does not require a feed-
back transducer or special actuator. Can be retrofitted to any Lectrotab installation. One piece design fits
in 2" hole. Gauge is rainproof. Display automatically dims at night. Automatic calibration of the indicator
is initiated whenever power is turned on or off.

SAFSC rocker switch performs all standard trim tab control functions. They are specially designed to
LECTROTAB TRIM TABS DC and 4 actuators per tab on 24V DC systems. Dimensions: 3-1/8"W x 3-1/4"L. Fasteners INCLUDED.
provide an "instant stop" circuit when the switches are released, thus preventing actuator over-run. This
control can be upgraded with an LED tab position indicator. The gasket sealed switch is designed to pre-
vent water entry. The control switch is self-contained and does not require an additional control box.
Switches are available for single or dual station applications. Operates up to 2 actuators per tab on 12V

SETR61 is a microprocessor-based trim tab control and trim tab position indicator incorporating tab
retraction and automatic calibration of the indicator whenever the control power is switched on or off.
Display automatically dims at night. This control is self-contained (no remote electronics enclosure) and
mounts over a 2" diameter hole 3-3/8" height by 4" wide. Most importantly, this control is completely
sealed, waterproof, front and back, and will not deteriorate in sunlight. Handles up to two actuators per
SWITCH No. SETR61 or No. SAFSC – SOLD SEPARATELY

No. tab. Designed primarily for exposed installations as with center console and flying bridge applications.
Description
Each
9x24 $809.00 9 x 24 Electric Trim Tab Set
9x36 950.00 9 x 36 Electric Trim Tab Set
ABK 247.75 12V DC 8 Second Stroke Actuator with Brackets
BBK 261.05 24V DC 8 Second Stroke Actuator with Brackets
AS2 440.70 Autoset Kit
SETR61 405.50 Dual Control Switch with Indicators
TI8B 282.90 Trim Tab Position Indicator, Black Bezel
SAFSC 111.10 Flat Rocker Switch (Single Station)
W4-20 55.10 20-ft. Inter Connect Wire Harness
TIA 15.40 Trim Indicator Adapter
HK 18.85 Hardware Kit
