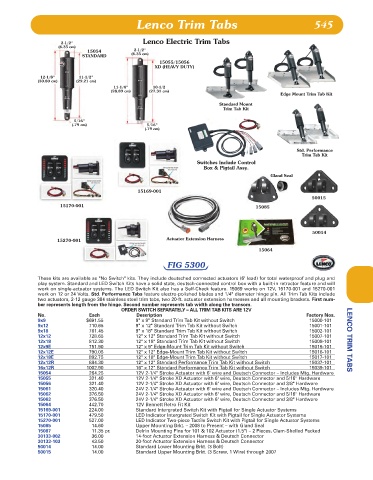

Lenco Trim Tabs 545

Lenco Electric Trim Tabs
2-1/2"
(6.35 cm)
15054 2-1/2"
STANDARD (6.35 cm)
15055/15056
XD (HEAVY DUTY)
12-1/8" 11-1/2"
(30.80 cm) (29.21 cm)
11-1/4" 10-1/2
(28.89 cm) (27.31 cm)
Edge Mount Trim Tab Kit
Standard Mount
Trim Tab Kit
5/16"
(.79 cm) 5/16"
(.79 cm)

Std. Performance
Trim Tab Kit
Switches Include Control
Box & Pigtail Assy.
Gland Seal

15169-001
50015
15170-001 15085

50014
Actuator Extension Harness
15270-001
15064

FIG 5300

These kits are available as "No Switch" kits. They include deutsched connected actuators (6' lead) for total waterproof and plug and
play system. Standard and LED Switch Kits have a solid state, deutsch-connected control box with a built-in retractor feature and will
work on single-actuator systems. The LED Switch Kit also has a Self-Check feature. 15069 works on 12V, 15170-001 and 15270-001
work on 12 or 24 Volts. Std. Performance Tabs feature electro-polished blades and 1/4" diameter hinge pin. All Trim Tab Kits include
two actuators, 2-12 gauge 304 stainless steel trim tabs, two 20-ft. actuator extension harnesses and all mounting brackets. First num-
ber represents length from the hinge. Second number represents tab width along the transom.
ORDER SWITCH SEPARATELY – ALL TRIM TAB KITS ARE 12V
No. Each Description Factory Nos.
9x9 $691.55 9" x 9" Standard Trim Tab Kit without Switch 15000-101
9x12 710.65 9" x 12" Standard Trim Tab Kit without Switch 15001-101
9x18 761.45 9" x 18" Standard Trim Tab Kit without Switch 15002-101
12x12 728.65 12" x 12" Standard Trim Tab Kit without Switch 15007-101
12x18 812.30 12" x 18" Standard Trim Tab Kit without Switch 15008-101 LENCO TRIM TABS
12x9E 751.90 12" x 9" Edge-Mount Trim Tab Kit without Switch 15015-101
12x12E 790.05 12" x 12" Edge-Mount Trim Tab Kit without Switch 15016-101
12x18E 892.75 12" x 18" Edge-Mount Trim Tab Kit without Switch 15017-101
12x12R 884.30 12" x 12" Standard Performance Trim Tab Kit without Switch 15037-101
16x12R 1002.90 16" x 12" Standard Performance Trim Tab Kit without Switch 15039-101
15054 264.25 12V 2-1/4" Stroke Actuator with 6' wire and Deutsch Connector – Includes Mtg. Hardware
15055 321.40 12V 2-1/4" Stroke XD Actuator with 6' wire, Deutsch Connector and 5/16" Hardware
15056 321.40 12V 2-1/4" Stroke XD Actuator with 6' wire, Deutsch Connector and 3/8" Hardware
15061 320.40 24V 2-1/4" Stroke Actuator with 6' wire and Deutsch Connector – Includes Mtg. Hardware
15062 376.50 24V 2-1/4" Stroke XD Actuator with 6' wire, Deutsch Connector and 5/16" Hardware
15063 376.50 24V 2-1/4" Stroke XD Actuator with 6' wire, Deutsch Connector and 3/8" Hardware
15064 442.70 12V Bennett Retro Fit Kit
15169-001 224.00 Standard Intergrated Switch Kit with Pigtail for Single Actuator Systems
15170-001 479.50 LED Indicator Intergrated Switch Kit with Pigtail for Single Actuator Systems
15270-001 527.00 LED Indicator Two-piece Tactile Switch Kit with Pigtail for Single Actuator Systems
15085 14.60 Upper Mounting Brkt. – 2008 to Present – with Gland Seal
15087 11.35 pr. Delrin Mounting Pins for 101 & 102 Actuator (1.5") – 2 Pieces, Clam-Shelled Packed
30133-002 36.00 14-foot Actuator Extension Harness & Deutsch Connector
30133-103 43.50 20-foot Actuator Extension Harness & Deutsch Connector
50014 14.00 Standard Lower Mounting Brkt. (3 Bolt)
50015 14.00 Standard Upper Mounting Brkt. (3 Screw, 1 Wire) through 2007
