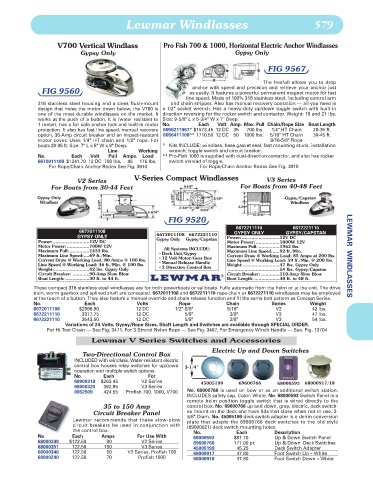

Lewmar Windlasses 579

V700 Vertical Windlass Pro Fish 700 & 1000, Horizontal Electric Anchor Windlasses
Gypsy Only Gypsy Only

FIG 9567

The freefall allows you to drop
anchor with speed and precision and retrieve your anchor just
FIG 9560 as easily. It features a powerful permanent magnet motor for fast
line speed. Made of 100% 316 stainless steel, including control arm
316 stainless steel housing and a sleek flush-mount and chain stripper. Also has manual recovery operation — all you need is
design that hides the motor down below, the V700 is a 1/2" socket wrench. Has a heavy-duty up/down toggle switch with built-in
one of the most durable windlasses on the market. It direction reversing for the rocker switch and contactor. Weight: 19 and 21 lbs.
works at the push of a button. It is (water resistant to Size: 9-5/8" L x 5-3/4" W x 7" Deep.
1 meter), has a fall safe anchor lock and built-in motor No. Each Volt Amp. Max. Pull Chain/Rope Size Boat Length
protection. It also has fast line speed, manual recovery 6656211967*$1573.45 12 DC 35 700 lbs. 1/4" HT Chain 20-35 ft.
option, 35-Amp circuit breaker and an impact-resistant 6656411108** 1710.50 12 DC 50 1000 lbs. 5/16" HT Chain 30-45 ft.
motor cover. Uses 1/4" HT chain and 1/2" rope. For 9/16-5/8" Rope
boats 20-35 ft. Size: 7" L x 5" W x 8" Deep. * Kits INCLUDE: windlass, base gasket seal, fast mounting studs, installation
Line Working wrench, toggle switch and circuit breaker.
No. Each Volt Pull Amps. Load ** Pro-Fish 1000 is supplied with dual-direction contactor, and also has rocker
6670011108 $1241.70 12 DC 700 lbs. 45 175 lbs. switch instead of toggle.
For Rope/Chain Anchor Rodes See Fig. 3910 For Rope/Chain Anchor Rodes See Fig. 3910
V-Series Compact Windlasses
V2 Series V3 Series
For Boats from 30-44 Feet For Boats from 40-48 Feet
Gypsy Only -Gypsy/Capstan
Windlass Windlass

FIG 9520
6672211110 6672221110
6672011108 GYPSY ONLY GYPSY/CAPSTAN
GYPSY ONLY 6672011108 6672221110 Power:...........................12V DC
Power:..........................12V DC Gypsy Only Gypsy/Capstan Motor Power: .................1000W 12V
Motor Power: ................700W 12V All Systems INCLUDE: Maximum Pull: ...............1962 lbs.
Maximum Pull: ..............1433 lbs. • Deck Unit/Gypsy Maximum Line Speed:.....92 ft./Min.
Maximum Line Speed:....69 ft./Min. Current Draw @ Working Load: 85 Amps at 200 lbs. LEWMAR WINDLASSES
Current Draw @ Working Load: 80 Amps @ 100 lbs. • 12 Volt Motor/Gear Box Line Speed @ Working Load: 59 ft./Min. @ 200 lbs.
Line Speed @ Working Load: 46 ft./Min. @ 100 lbs. • Manual Release Handle Weight:..........................47 lbs. Gypsy Only
• 2 Direction Control Box
Weight:.........................42 lbs. Gypsy Only .....................................54 lbs. Gypsy/Capstan
Circuit Breaker: ............90-Amp Slow Blow Circuit Breaker: .............110-Amp Slow Blow
Boat Length: .................30 ft. to 44 ft. Boat Length: ..................40 ft. to 48 ft.
These compact 316 stainless steel windlasses are for both powerboats or sailboats. Fully automatic from the helm or at the unit. The drive
train, worm gearbox and splined shaft are concealed. 6672011108 and 6672211110 rope-chain or 6672221110 windlasses may be employed
at the touch of a button. They also feature a manual override and chain release function and fit the same bolt pattern as Concept Series.
No. Each Volts Rope Chain Series Weight
6672011108 $2996.90 12 DC 1/2"-5/8" 5/16" V2 42 lbs.
6672211110 3377.75 12 DC 5/8" 3/8" V3 47 lbs.
6672221110 3543.50 12 DC 5/8" 3/8" V3 54 lbs.
Variations of 24 Volts, Gypsy/Rope Sizes, Shaft Length and Switches are available through SPECIAL ORDER.
For Hi-Test Chain — See Fig. 3471, For 3-Strand Nylon Rope — See Fig. 3467, For Emergency Winch Handle — See. Fig. 13704
Lewmar V Series Switches and Accessories

Electric Up and Down Switches
Two-Directional Control Box
INCLUDED with windlass. Water-resistant electric
control box houses relay switches for up/down 3-1/4"
operation and multiple switch options.
No. Each For
68000318 $263.45 V2 Series 45005199 69600766 68000593 68000917/18
68000320 392.95 V3 Series
0052509 424.55 Profish 700, 1000, V700 No. 69600766 is used on bow or as an additional switch station.
INCLUDES safety cap. Color: White. No. 68000593 Switch Panel is a
remote helm position toggle switch that is wired directly to the
35 to 150 Amp control box. No. 69600766 up and down, gray, electric, deck switch-
Circuit Breaker Panel es mount on the deck and have lids that close when not in use. 2-
5/8" Diam. No. 45005199 deck switch adapter is a delrin conversion
Lewmar recommends that these slow-blow plate that adapts the 69600766 deck switches to the old style
circuit breakers be used in conjunction with (69000021) deck switch mounting holes.
the control box.
No. Each Description
No. Each Amps For Use With 68000593 $81.70 Up & Down Switch Panel
68000349 $122.50 90 V2 Series 69600766 177.00 pr. Up & Down Deck Switches
68000351 122.50 150 V3 Series 45005199 45.25 Deck Switch Adapter
68000348 122.50 50 V2 Series, Profish 700 68000917 47.80 Foot Switch Up – White
68000240 122.50 70 Profish 1000 68000918 47.80 Foot Switch Down – White
