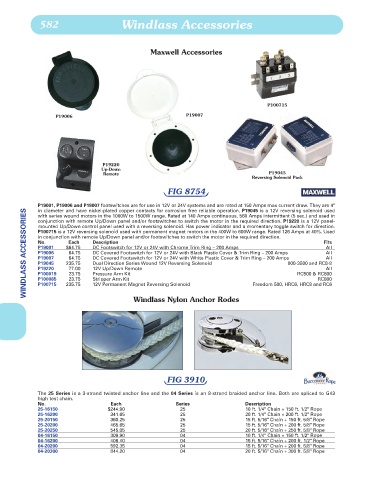

582 Windlass Accessories

Maxwell Accessories

P100715
P19006 P19007

P19220
Up-Down
Remote P19045
Reversing Solenoid Pack

FIG 8754

P19001, P19006 and P19007 footswitches are for use in 12V or 24V systems and are rated at 150 Amps max current draw. They are 4"
WINDLASS ACCESSORIES P100715 is a 12V reversing solenoid used with permanent magnet motors in the 400W to 600W range. Rated 126 Amps at 40%. Used
in diameter and have nickel-plated copper contacts for corrosion free reliable operation. P19045 is a 12V reversing solenoid used
with series wound motors in the 1000W to 1500W range. Rated at 140 Amps continuous, 560 Amps intermittent (5 sec.) and used in
conjunction with remote Up/Down panel and/or footswitches to switch the motor in the required direction. P19220 is a 12V panel-
mounted Up/Down control panel used with a reversing solenoid. Has power indicator and a momentary toggle switch for direction.
in conjunction with remote Up/Down panel and/or footswitches to switch the motor in the required direction.
Fits
No.
Each
Description
DC Footswitch for 12V or 24V with Chrome Trim Ring – 200 Amps
P19001
$64.75
All
P19006
64.75
All
DC Covered Footswitch for 12V or 24V with Black Plastic Cover & Trim Ring – 200 Amps
All
64.75
P19007
DC Covered Footswitch for 12V or 24V with White Plastic Cover & Trim Ring – 200 Amps
P19045
Dual Direction Series Wound 12V Reversing Solenoid
235.75
800-3500 and RC8-8
All
12V Up/Down Remote
P19220
77.00
RC500 & RC800
Pressure Arm Kit
23.75
P100019
Stripper Arm Kit
23.75
P100085
RC800
P100715
235.75
12V Permanent Magnet Reversing Solenoid
Windlass Nylon Anchor Rodes Freedom 500, HRC6, HRC8 and RC6
FIG 3910
The 25 Series is a 3-strand twisted anchor line and the 04 Series is an 8-strand braided anchor line. Both are spliced to G43
high test chain.
No. Each Series Description
25-16150 $244.90 25 10 ft. 1/4" Chain + 150 ft. 1/2" Rope
25-16200 341.65 25 20 ft. 1/4" Chain + 200 ft. 1/2" Rope
25-20150 360.25 25 15 ft. 5/16" Chain + 150 ft. 5/8" Rope
25-20200 465.65 25 15 ft. 5/16" Chain + 200 ft. 5/8" Rope
25-20250 545.05 25 20 ft. 5/16" Chain + 250 ft. 5/8" Rope
04-16150 309.90 04 10 ft. 1/4" Chain + 150 ft. 1/2" Rope
04-16200 406.40 04 15 ft. 5/16" Chain + 200 ft. 1/2" Rope
04-20200 592.35 04 15 ft. 5/16" Chain + 200 ft. 5/8" Rope
04-20300 844.20 04 20 ft. 5/16" Chain + 300 ft. 5/8" Rope
