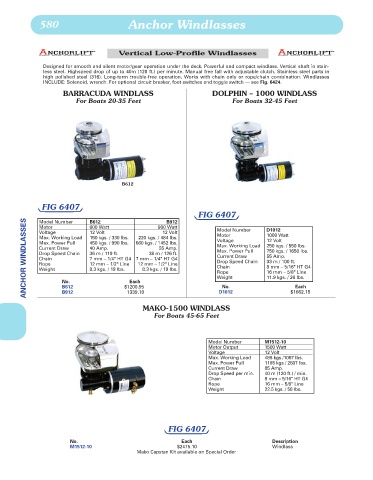

580 Anchor Windlasses

Vertical Low-Profile Windlasses

Designed for smooth and silent motor/gear operation under the deck. Powerful and compact windlass. Vertical shaft in stain-
less steel. Highspeed drop of up to 40m (120 ft.) per minute. Manual free fall with adjustable clutch. Stainless steel parts in
high polished steel (316). Long-term trouble-free operation. Works with chain only or rope/chain combination. Windlasses
INCLUDE: Solenoid, wrench. For optional circuit breaker, foot switches and toggle switch — see Fig. 6424.
BARRACUDA WINDLASS DOLPHIN – 1000 WINDLASS
For Boats 20-35 Feet For Boats 32-45 Feet

B612

FIG 6407
FIG 6407 D1012
ANCHOR WINDLASSES Max. Working Load 150 kgs. / 330 lbs. Each 12 mm – 1/2" Line Voltage 12 Volt
B612
B912
Model Number
600 Watt
900 Watt
Motor
Model Number
12 Volt
12 Volt
Voltage
Motor
1000 Watt
220 kgs. / 484 lbs.
660 kgs. / 1452 lbs.
Max. Power Pull
450 kgs. / 990 lbs.
250 kgs. / 550 lbs.
Max. Working Load
Current Draw
40 Amp.
55 Amp.
750 kgs. / 1650 lbs.
Max. Power Pull
Drop Speed Chain
36 m / 119 ft.
38 m / 126 ft.
Current Draw
55 Amp.
Chain
7 mm – 1/4" HT G4
7 mm – 1/4" HT G4
33 m / 100 ft.
Drop Speed Chain
Rope
12 mm – 1/2" Line
8 mm – 5/16" HT G4
Chain
8.3 kgs. / 19 lbs.
8.3 kgs. / 19 lbs.
Weight
Rope
16 mm – 5/8" Line
Weight
11.9 kgs. / 26 lbs.
No.
$1200.95
B612
Each
No.
B912
D1012
1339.10
MAKO-1500 WINDLASS $1662.15
For Boats 45-65 Feet
Model Number M1512-10
Motor Output 1500 Watt
Voltage 12 Volt
Max. Working Load 485 kgs /1067 lbs.
Max. Power Pull 1185 kgs / 2607 lbs.
Current Draw 85 Amp.
Drop Speed per min. 40 m (120 ft.) / min.
Chain 8 mm – 5/16" HT G4
Rope 16 mm – 5/8" Line
Weight 22.5 kgs. / 50 lbs.
FIG 6407
No. Each Description
M1512-10 $2475.10 Windlass
Mako Capstan Kit available on Special Order
