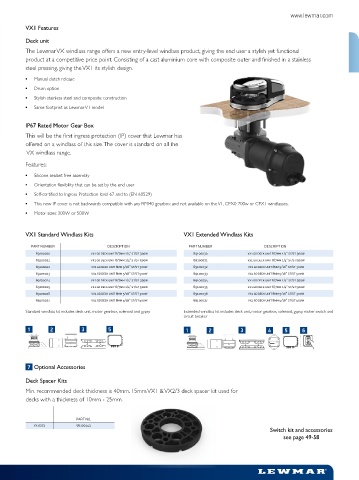

VX1 Features

Deck unit
The Lewmar VX windlass range offers a new entry-level windlass product, giving the end user a stylish yet functional
product at a competitive price point. Consisting of a cast aluminium core with composite outer and fi nished in a stainless
steel pressing, giving the VX1 its stylish design.

▪ Manual clutch release
▪ Drum option
▪ Stylish stainless steel and composite construction
▪ Same footprint as Lewmar V1 model

IP67 Rated Motor Gear Box
This will be the fi rst ingress protection (IP) cover that Lewmar has
offered on a windlass of this size. The cover is standard on all the
VX windlass range.

Features:

▪ Silicone sealant free assembly
▪ Orientation flexibility that can be set by the end user
▪ Self-certified to Ingress Protection level 67 and to (EN 60529)
▪ This new IP cover is not backwards compatible with any RMI40 gearbox and not available on the V1, CPX0 700w or CPX1 windlasses.
▪ Motor sizes: 300W or 500W

VX1 Standard Windlass Kits VX1 Extended Windlass Kits
PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
    /  / ” /      /  / ” / 
    /  / ” /      /  / ” / 
     / ” /       / ” / 
     / ” /       / ” / 
    /  / ” /      /  / ” / 
    /  / ” /      /  / ” / 
     / ” /       / ” / 
     / ” /       / ” / 
Standard windlass kit includes deck unit, motor gearbox, solenoid and gypsy Extended windlass kit includes deck unit, motor gearbox, solenoid, gypsy, rocker switch and
circuit breaker
1 2 3 5 1 2 3 4 5 6

ON

7 Optional Accessories

Deck Spacer Kits
Min. recommended deck thickness is 40mm. 15mm VX1 & VX2/3 deck spacer kit used for
decks with a thickness of 10mm - 25mm.

PART NO.
 / /
Switch kit and accessories
see page 49-58
