1. Windlasses

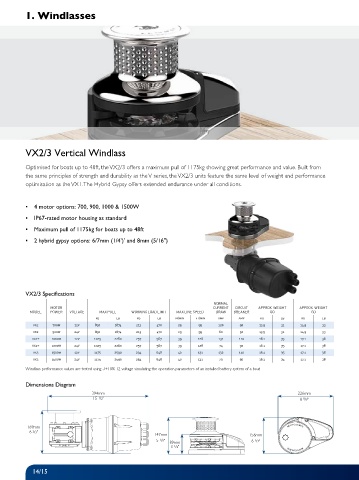

VX2/3 Vertical Windlass

Optimised for boats up to 48ft, the VX2/3 offers a maximum pull of 1175kg showing great performance and value. Built from
the same principles of strength and durability as the V series, the VX2/3 units feature the same level of weight and performance
optimisation as the VX1. The Hybrid Gypsy offers extended endurance under all conditions.

▪ 4 motor options: 700, 900, 1000 & 1500W
▪ IP67-rated motor housing as standard
▪ Maximum pull of 1175kg for boats up to 48ft

▪ 2 hybrid gypsy options: 6/7mm (1/4’)’ and 8mm (5/16")

VX2/3 Specifications
NORMAL
MOTOR CURRENT CIRCUIT APPROX WEIGHT APPROX WEIGHT
MODEL POWER VOLTAGE MAX PULL WORKING LOAD LIMIT MAX LINE SPEED DRAW BREAKER GO GD
    / /      
   . .
   . .
 +   . .
 +   . .
   . .
   . .
Windlass performance values are tested using -/+10% 12 voltage simulating the operation parameters of an installed battery system of a boat

Dimensions Diagram
394mm 226mm
15 1 /2" 8 8 /9"

169mm
6 2 /3"
147mm 156mm
5 7 /9" 89mm 6 1 /7"
3 1 /2"
