1. Windlasses

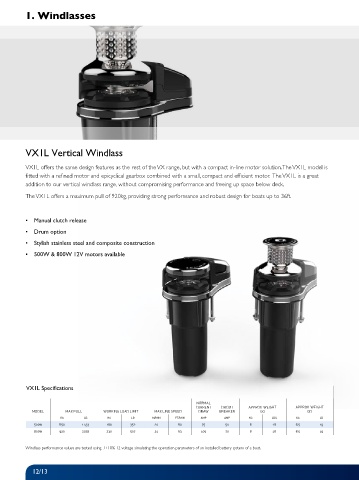

VX1L Vertical Windlass

VX1L offers the same design features as the rest of the VX range, but with a compact in-line motor solution. The VX1L model is
fi tted with a refi ned motor and epicyclical gearbox combined with a small, compact and effi cient motor. The VX1L is a great
addition to our vertical windlass range, without compromising performance and freeing up space below deck.

The VX1L offers a maximum pull of 920kg, providing strong performance and robust design for boats up to 36ft.

▪ Manual clutch release
▪ Drum option
▪ Stylish stainless steel and composite construction

▪ 500W & 800W 12V motors available

VX1L Specifications

NORMAL
CURRENT CIRCUIT APPROX WEIGHT APPROX WEIGHT
MODEL MAX PULL WORKING LOAD LIMIT MAX LINE SPEED DRAW BREAKER GO GD
    / /      
 .
 .

Windlass performance values are tested using -/+10% 12 voltage simulating the operation parameters of an installed battery system of a boat.
