1. Windlasses

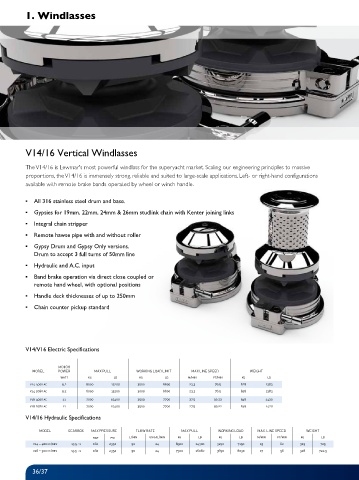

V14/16 Vertical Windlasses

The V14/16 is Lewmar's most powerful windlass for the superyacht market. Scaling our engineering principles to massive
proportions, the V14/16 is immensely strong, reliable and suited to large-scale applications. Left- or right-hand confi gurations
available with remote brake bands operated by wheel or winch handle.

▪ All 316 stainless steel drum and base.
▪ Gypsies for 19mm, 22mm, 24mm & 26mm studlink chain with Kenter joining links
▪ Integral chain stripper

▪ Remote hawse pipe with and without roller
▪ Gypsy Drum and Gypsy Only versions.
Drum to accept 3 full turns of 50mm line
▪ Hydraulic and A.C. input
▪ Band brake operation via direct close coupled or
remote hand wheel, with optional positions
▪ Handle deck thicknesses of up to 250mm
▪ Chain counter pickup standard

V14/V16 Electric Specifications

MOTOR
MODEL POWER MAX PULL WORKING LOAD LIMIT MAX LINE SPEED WEIGHT
     / /  
   . . .
   . . .
   . .
   . .
V14/16 Hydraulic Specifications

MODEL GEARBOX MAX PRESSURE FLOW RATE MAX PULL WORKING LOAD MAX. LINE SPEED WEIGHT
  /  /     / /  
 – / . :
 – / . : .

36/37
