I nstrument Pods

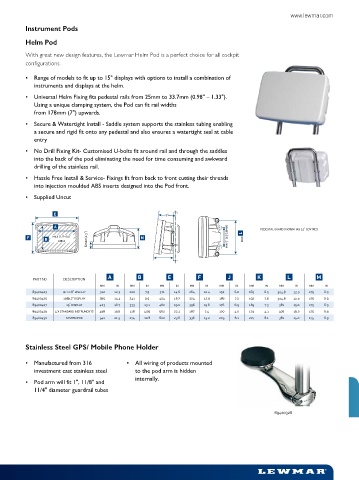

Helm Pod
With great new design features, the Lewmar Helm Pod is a perfect choice for all cockpit
confi gurations.

▪ Range of models to fit up to 15" displays with options to install a combination of
instruments and displays at the helm.
▪ Universal Helm Fixing fits pedestal rails from 25mm to 33.7mm (0.98" – 1.33").
Using a unique clamping system, the Pod can fit rail widths
from 178mm (7") upwards.

▪ Secure & Watertight Install - Saddle system supports the stainless tubing enabling
a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable
entry
▪ No Drill Fixing Kit- Customised U-bolts fit around rail and through the saddles
into the back of the pod eliminating the need for time consuming and awkward
drilling of the stainless rail.
▪ Hassle Free Install & Service- Fixings fit from back to front cutting their threads
into injection moulded ABS inserts designed into the Pod front.
▪ Supplied Uncut

E °
A     " 
 ( . ") 
F  - M  " ( . ) L
B


A B E F J K L M
PART NO DESCRIPTION
               
  "  . . . . . . . . .
 "  . . . . . . . . .
"  . . . . . . . .
   . . . . . . . .
  . . . . . . . .

Stainless Steel GPS/ Mobile Phone Holder

▪ Manufactured from 316 ▪ All wiring of products mounted
investment cast stainless steel to the pod arm is hidden
▪ Pod arm will fit 1", 11/8" and internally.
11/4" diameter guardrail tubes

376/377
