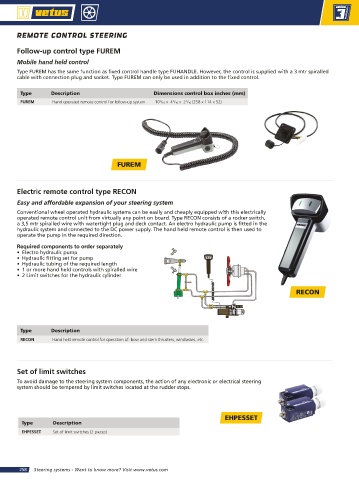

REMOTE CONTROL STEERING

Follow-up control type FUREM
Mobile hand held control
Type FUREM has the same function as fixed control handle type FUHANDLE. However, the control is supplied with a 3 mtr spiralled
cable with connection plug and socket. Type FUREM can only be used in addition to the fixed control.

Type Description Dimensions control box inches (mm)
FUREM Hand operated remote control for follow-up system 10 /16 x 4 /16 x 2 /16 (258 x 114 x 52)
3
5
1

FUREM

Electric remote control type RECON
Easy and affordable expansion of your steering system
Conventional wheel operated hydraulic systems can be easily and cheaply equipped with this electrically
operated remote control unit from virtually any point on board. Type RECON consists of a rocker switch,
a 3,5 mtr spiralled wire with watertight plug and deck contact. An electro hydraulic pump is fitted in the
hydraulic system and connected to the DC power supply. The hand held remote control is then used to
operate the pump in the required direction.
Required components to order separately
• Electro hydraulic pump
• Hydraulic fitting set for pump
• Hydraulic tubing of the required length
• 1 or more hand held controls with spiralled wire
• 2 Limit switches for the hydraulic cylinder

RECON

Type Description
RECON Hand held remote control for operation of: bow and stern thrusters, windlasses, etc.

Set of limit switches
To avoid damage to the steering system components, the action of any electronic or electrical steering
system should be tempered by limit switches located at the rudder stops.

EHPESSET
Type Description
EHPESSET Set of limit switches (2 pieces)

258 Steering systems - Want to know more? Visit www.vetus.com
