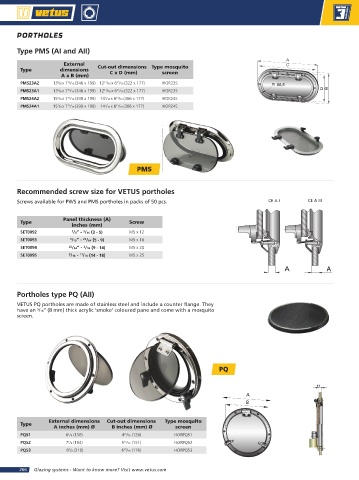

Page 266 - Vetus

PORTHOLES

Type PMS (AI and AII)
A
External C
Type dimensions Cut-out dimensions Type mosquito
C x D (mm)
screen
A x B (mm)
PMS23A2 13 /8 x 7 /16 (346 x 199) 12 /16 x 6 /16 (322 x 177) HOR23S R 88,5
5
11
13
15
PMS23A1 13 /8 x 7 /16 (346 x 199) 12 /16 x 6 /16 (322 x 177) HOR23S D B
5
11
15
13
3
13
15
PMS24A2 15 /8 x 7 /16 (390 x 199) 14 /16 x 6 /16 (366 x 177) HOR24S
7
PMS24A1 15 /8 x 7 /16 (390 x 199) 14 /16 x 6 /16 (366 x 177) HOR24S
13
3
15
7
PMS
Recommended screw size for VETUS portholes
Screws available for PWS and PMS portholes in packs of 50 pcs. CE A I CE A III

Panel thickness (A)
Type Screw
inches (mm)
SET0092 1 /8” - /16 (3 - 5) M5 x 12
3
23
SET0093 3 /16” - /64 (5 - 9) M5 x 16
SET0094 23 /64” - /16 (9 - 14) M5 x 20
3
SET0095 9 /16 - /16 (14 - 18) M5 x 25
11

Portholes type PQ (AII)
VETUS PQ portholes are made of stainless steel and include a counter flange. They
5
have an /16’’ (8 mm) thick acrylic ‘smoke’ coloured pane and come with a mosquito
screen.

PQ

A
B

External dimensions Cut-out dimensions Type mosquito
Type
A inches (mm) Ø B inches (mm) Ø screen
PQ51 6 /4 (158) 4 /16 (126) HORPQ51
15
1
PQ52 7 /4 (184) 5 /16 (151) HORPQ52
15
1
PQ53 8 /4 (210) 6 /16 (176) HORPQ53
1
15
266 Glazing systems - Want to know more? Visit www.vetus.com
