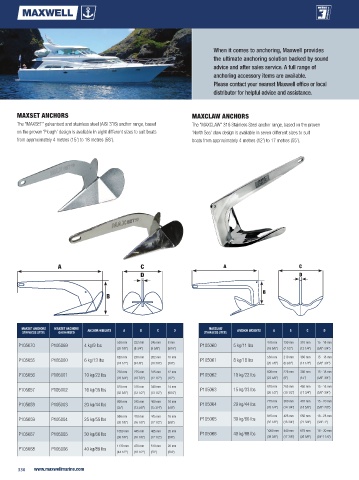

Page 336 - Vetus

When it comes to anchoring, Maxwell provides
the ultimate anchoring solution backed by sound
advice and after sales service. A full range of
anchoring accessory items are available.
Please contact your nearest Maxwell office or local
distributor for helpful advice and assistance.

MAXSET ANCHORS MAXCLAW ANCHORS
The “MAXSET” galvanised and stainless steel (AISI 316) anchor range, based The “MAXCLAW” 316 Stainless Steel anchor range, based on the proven
on the proven ‘Plough’ design is available in eight different sizes to suit boats ‘North Sea’ claw design is available in seven different sizes to suit
from approximately 4 metres (15’) to 18 metres (58’). boats from approximately 4 metres (12’) to 17 metres (55’).

A C A C
D D

B
B

MAXSET ANCHORS MAXSET ANCHORS ANCHOR WEIGHTS A B C D MAXCLAW ANCHOR WEIGHTS A B C D
STAINLESS STEEL GALVANISED STAINLESS STEEL
530 mm 222 mm 245 mm 8 mm 470 mm 190 mm 310 mm 15 - 18 mm
P105070 P105069 4 kg/9 lbs P105060 5 kg/11 lbs
(20 7/8”) (8 3/4”) (9 5/8”) (5/16”) (18 5/8”) (7 1/2”) (12 1/4”) (5/8”-3/4”)
620 mm 230 mm 262 mm 10 mm 530 mm 210 mm 360 mm 15 - 18 mm
P105055 P105000 6 kg/13 lbs P105061 8 kg/18 lbs
(24 1/2”) (9 1/8”) (10 3/8”) (3/8”) (20 7/8”) (8 3/8”) (14 1/4”) (5/8”-3/4”)
730 mm 275 mm 315 mm 12 mm 600 mm 228 mm 380 mm 15 - 18 mm
P105056 P105001 10 kg/22 lbs P105062 10 kg/22 lbs
(28 3/4”) (10 7/8”) (12 1/2”) (1/2”) (23 5/8”) (9”) (15”) (5/8”-3/4”)
820 mm 315 mm 340 mm 14 mm 670 mm 265 mm 450 mm 15 - 18 mm
P105057 P105002 16 kg/35 lbs P105063 15 kg/33 lbs
(32 3/8”) (12 1/2”) (13 1/2”) (9/16”) (26 1/2”) (10 1/2”) (17 3/4”) (5/8”-3/4”)
890 mm 345 mm 400 mm 16 mm 715 mm 360 mm 470 mm 15 - 20 mm
P105058 P105003 20 kg/44 lbs P105064 20 kg/44 lbs
(35”) (13 5/8”) (15 3/4”) (5/8”) (28 1/4”) (14 1/4”) (18 5/8”) (5/8”-7/8”)
986 mm 410 mm 445 mm 16 mm 815 mm 425 mm 550 mm 18 - 25 mm
P105059 P105004 25 kg/55 lbs P105065 30 kg/66 lbs
(38 7/8”) (16 1/8”) (17 1/2”) (5/8”) (32 1/8”) (16 3/4”) (21 3/4”) (3/4”-1”)
1050 mm 445 mm 465 mm 20 mm 1000 mm 440 mm 675 mm 18 - 30 mm
P105067 P105005 30 kg/66 lbs P105066 40 kg/88 lbs
(38 7/8”) (16 1/8”) (17 1/2”) (5/8”) (39 3/8”) (17 3/8”) (26 5/8”) (3/4”-1 1/4”)
1130 mm 470 mm 510 mm 20 mm
P105068 P105006 40 kg/88 lbs
(44 1/2”) (18 1/2”) (20”) (3/4”)
