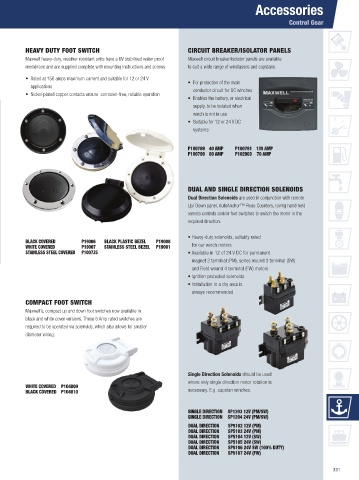

Page 331 - Vetus

Accessories

Control Gear

HEAVY DUTY FOOT SWITCH CIRCUIT BREAKER/ISOLATOR PANELS
Maxwell heavy-duty, weather resistant units have a UV stabilised water proof Maxwell circuit breaker/isolator panels are available
membrane and are supplied complete with mounting instructions and screws. to suit a wide range of windlasses and capstans.

• Rated at 150 amps maximum current and suitable for 12 or 24 V • For protection of the main
applications conductor circuit for DC winches
• Nickel-plated copper contacts ensure corrosion-free, reliable operation
• Enables the battery, or electrical
supply, to be isolated when
winch is not in use
• Suitable for 12 or 24 V DC
systems

P100789 40 AMP P100791 135 AMP
P100790 80 AMP P102903 70 AMP

DUAL AND SINGLE DIRECTION SOLENOIDS
Dual Direction Solenoids are used in conjunction with remote
Up/ Down panel, AutoAnchor™ Rode Counters, roving hand held
remote controls and/or foot switches to switch the motor in the
required direction.

• Heavy-duty solenoids, suitably rated
BLACK COVERED P19006 BLACK PLASTIC BEZEL P19008
WHITE COVERED P19007 STAINLESS STEEL BEZEL P19001 for our winch motors
STAINLESS STEEL COVERED P100735 • Available in 12 of 24 V DC for permanent
magnet 2 terminal (PM), series wound 3 terminal (SW)
and Field wound 4 terminal (FW) motors
• Ignition protected solenoids
• Installation in a dry area is
always recommended
COMPACT FOOT SWITCH
Maxwell’s, compact up and down foot switches now available in
black and white cover versions. These 5 Amp rated switches are
required to be operated via solenoids, which also allows for smaller
diameter wiring.

Single Direction Solenoids should be used
where only single direction motor rotation is
WHITE COVERED P104809
BLACK COVERED P104810 necessary. E.g. capstan winches.

SINGLE DIRECTION SP1393 12V (PM/SW)
SINGLE DIRECTION SP1394 24V (PM/SW)
DUAL DIRECTION SP5102 12V (PM)
DUAL DIRECTION SP5103 24V (PM)
DUAL DIRECTION SP5104 12V (SW)
DUAL DIRECTION SP5105 24V (SW)
DUAL DIRECTION SP5106 24V SW (100% DUTY)
DUAL DIRECTION SP5107 24V (FW)

331
