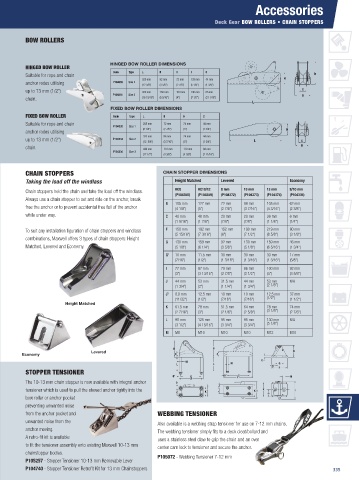

Accessories

Deck Gear BOW ROLLERS • CHAIN STOPPERS

BOW ROLLERS

HINGED BOW ROLLER DIMENSIONS
HINGED BOW ROLLER
Code Type L B H h C
Suitable for rope and chain
320 mm 92 mm 72 mm 133 mm 44 mm
anchor rodes utilising P104330 Size 1 (12 5/8”) (3 5/8”) (2 7/8”) (5 1/4”) (1 3/4”)
up to 13 mm (1/2”) 430 mm 160 mm 100 mm 190 mm 66 mm
P104331 Size 2
chain. (16 15/16”) (5 5/16”) (4”) (7 1/2”) (2 11/16”)
FIXED BOW ROLLER DIMENSIONS
FIXED BOW ROLLER Code Type L B H C
Suitable for rope and chain 205 mm 72 mm 74 mm 44 mm
P104332 Size 1 (8 1/8”) (2 7/8”) (3”) (1 3/4”)
anchor rodes utilising
320 mm 86 mm 74 mm 44 mm
up to 13 mm (1/2”) P104333 Size 2 (12 5/8”) (3 7/16”) (3”) (1 3/4”)
chain. 444 mm 110 mm 110 mm 68 mm
P104334 Size 3
(17 1/2”) (4 3/8”) (4 3/8”) (2 11/16”)

CHAIN STOPPERS CHAIN STOPPER DIMENSIONS
Taking the load off the windlass Height Matched Levered Economy
Chain stoppers hold the chain and take the load off the windlass. RC8 RC10/12 8 mm 10 mm 13 mm 8/10 mm
(P104358) (P104359) (P104372) (P104373) (P104374) (P104335)
Always use a chain stopper to set and ride on the anchor, break
B 105 mm 127 mm 72 mm 86 mm 105 mm 62 mm
free the anchor or to prevent accidental free fall of the anchor (4 1/8”) (5”) (2 7/8”) (3 7/16”) (4 3/16”) (2 3/8”)
while under way. C 40 mm 48 mm 20 mm 20 mm 26 mm 6 mm
(1 9/16”) (1 7/8”) (7/8”) (7/8”) (1 1/8”) (1/4”)
To suit any installation figuration of chain stoppers and windlass F 150 mm 182 mm 152 mm 190 mm 219 mm 80 mm
(5 15/16”) (7 3/16”) (6”) (7 1/2”) (8 5/8”) (3 1/8”)
combinations, Maxwell offers 3 types of chain stoppers: Height
G 130 mm 159 mm 92 mm 130 mm 159 mm 46 mm
Matched, Levered and Economy. (5 1/8”) (6 1/4”) (3 5/8”) (5 1/8”) (6 5/16”) (1 3/4”)
G 1 10 mm 11.5 mm 30 mm 30 mm 30 mm 17 mm
(7/16”) (1/2”) (1 3/16”) (1 3/16”) (1 3/16”) (5/8”)
I 77 mm 97 mm 70 mm 86 mm 100 mm 92 mm
(3”) (3 13/16”) (2 7/8”) (3 1/2”) (4”) (3 5/8”)
J 44 mm 53 mm 31.5 mm 44 mm 53 mm N/A
(1 3/4”) (2”) (1 1/4”) (1 3/4”) (2 1/8”)
J 1 8.8 mm 12.5 mm 10 mm 10 mm 12.5 mm 37 mm
(11/32”) (1/2”) (7/16”) (7/16”) (1/2”) (1 1/2”)
Height Matched
K 61.5 mm 78 mm 51.5 mm 64 mm 78 mm 74 mm
(2 7/16”) (3”) (2 1/8”) (2 5/8”) (3 1/8”) (2 7/8”)
L 90 mm 125 mm 95 mm 95 mm 130 mm N/A
(3 1/2”) (4 15/16”) (3 3/4”) (3 3/4”) (5 1/8”)
M M8 M10 M10 M10 M12 M10

Levered
Economy

STOPPER TENSIONER
The 10-13 mm chain stopper is now available with integral anchor
tensioner which is used to pull the stowed anchor tightly into the
bow roller or anchor pocket
preventing unwanted noise
from the anchor pocket and WEBBING TENSIONER
unwanted noise from the Also available is a webbing strap tensioner for use on 7-12 mm chains.
anchor moving. The webbing tensioner simply fits to a deck cleat/bollard and
A retro-fit kit is available uses a stainless steel claw to grip the chain and an over
to fit the tensioner assembly onto existing Maxwell 10-13 mm center cam lock to tensioner and secure the anchor.
chainstopper bodies. P105072 - Webbing Tensioner 7-12 mm
P105257 - Stopper Tensioner 10-13 mm Removable Lever
P104740 - Stopper Tensioner Retrofit Kit for 13 mm Chainstoppers 335
