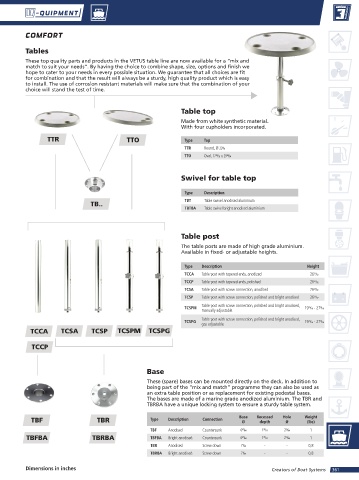

Page 361 - Vetus

COMFORT

Tables
These top quality parts and products in the VETUS table line are now available for a “mix and
match to suit your needs”. By having the choice to combine shape, size, options and finish we
hope to cater to your needs in every possible situation. We guarantee that all choices are fit
for combination and that the result will always be a sturdy, high quality product which is easy
to install. The use of corrosion resistant materials will make sure that the combination of your
choice will stand the test of time. 

Table top
Made from white synthetic material.
With four cupholders incorporated.
TTR TTO Type Top
TTR Round, Ø 23 5 /8
TTO Oval, 17 23 /32 x 29 59 /64

Swivel for table top

Type Description
TBT Table swivel anodised aluminium
TB..
TBTBA Table swivel bright anodised aluminium

Table post
The table posts are made of high grade aluminium.
Available in fixed- or adjustable heights.
Type Description Height
TCCA Table post with tapered ends, anodized 26 31 /32
TCCP Table post with tapered ends, polished 26 31 /32
TCSA Table post with screw connection, anodized 26 31 /32
TCSP Table post with screw connection, polished and bright anodised 26 31 /32
Table post with screw connection, polished and bright anodised,
TCSPM 19 11 /16 - 27 9 /16
manually adjustable
Table post with screw connection, polished and bright anodised,
TCSPG 19 11 /16 - 27 9 /16
gas adjustable
TCCA TCSA TCSP TCSPM TCSPG
TCCP

Base
These (spare) bases can be mounted directly on the deck. In addition to
being part of the “mix and match” programme they can also be used as
an extra table position or as replacement for existing pedestal bases.
The bases are made of a marine grade anodized aluminium. The TBR and
TBRBA have a unique locking system to ensure a sturdy table system.

TBF TBR Type Description Connection Base Recessed Hole Weight
Ø
(lbs)
depth
Ø
TBF Anodised Countersunk 6 47 /64 1 31 /32 2 53 /64 1
TBFBA TBRBA TBFBA Bright anodised Countersunk 6 47 /64 1 31 /32 2 53 /64 1
TBR Anodised Screw down 7 1 /64 - - 0,8
TBRBA Bright anodised Screw down 7 1 /64 - - 0,8
Dimensions in inches Creators of Boat Systems 361
