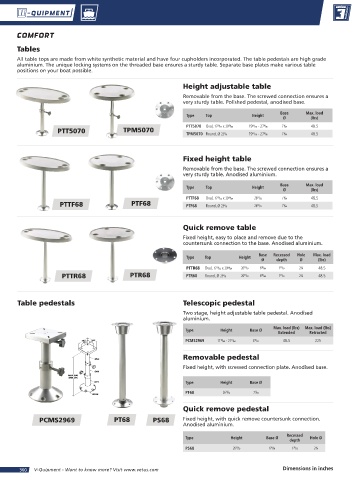

Page 360 - Vetus

COMFORT
Tables

All table tops are made from white synthetic material and have four cupholders incorporated. The table pedestals are high grade
aluminium. The unique locking systems on the threaded base ensures a sturdy table. Separate base plates make various table
positions on your boat possible.

Height adjustable table
Removable from the base. The screwed connection ensures a
very sturdy table. Polished pedestal, anodised base.

Base Max. load
Type Top Height
Ø (lbs)
PTT5070 Oval, 17 23 /32 x 29 59 /64 19 11 /16 - 27 9 /16 7 1 /64 48.5
PTT5070 TPM5070
TPM5070 Round, Ø 23 5 /8 19 11 /16 - 27 9 /16 7 1 /64 48.5

Fixed height table
Removable from the base. The screwed connection ensures a
very sturdy table. Anodised aluminium.

Base Max. load
Type Top Height
Ø (lbs)
PTTF68 Oval, 17 23 /32 x 29 59 /64 26 31 /32 7 1 /64 48.5
PTTF68 PTF68 PTF68 Round, Ø 23 5 /8 26 31 /32 7 1 /64 48.5

Quick remove table
Fixed height, easy to place and remove due to the
countersunk connection to the base. Anodised aluminium.
Base Recessed Hole Max. load
Type Top Height
Ø depth Ø (lbs)
PTTR68 Oval, 17 23 /32 x 29 59 /64 26 31 /32 6 47 /64 1 31 /32 2 3 /4 48.5
PTTR68 PTR68 PTR68 Round, Ø 23 5 /8 26 31 /32 6 47 /64 1 31 /32 2 3 /4 48.5

Table pedestals Telescopic pedestal
Two stage, height adjustable table pedestal. Anodised
aluminium.
Max. load (lbs) Max. load (lbs)
Type Height Base Ø
Extended Retracted
182 182 PCMS2969 11 39 /64 - 27 11 /64 8 31 /32 48.5 225
127 127
Removable pedestal
Ø50
Fixed height, with screwed connection plate. Anodised base.
Ø60
MAX.690
MIN.295
Ø73 Type Height Base Ø
PT68 26 31 /32 7 1 /64
Ø228
Quick remove pedestal
PCMS2969 PT68 PS68 Fixed height, with quick remove countersunk connection.
Anodised aluminium.

Recessed
Type Height Base Ø Hole Ø
depth
PS68 26 31 /32 6 47 /64 1 31 /32 2 3 /4

360 V-Quipment - Want to know more? Visit www.vetus.com Dimensions in inches
