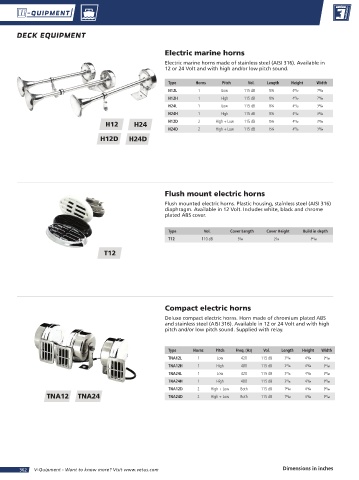

Page 362 - Vetus

DECK EQUIPMENT

Electric marine horns
Electric marine horns made of stainless steel (AISI 316). Available in
12 or 24 Volt and with high and/or low pitch sound.

Type Horns Pitch Vol. Length Height Width
H12L 1 Low 115 dB 18 1 /4 4 17 /32 7 43 /64
H12H 1 High 115 dB 18 1 /4 4 17 /32 7 43 /64
H24L 1 Low 115 dB 18 1 /4 4 17 /32 3 47 /64
H24H 1 High 115 dB 18 1 /4 4 17 /32 3 47 /64
H12 H24 H12D 2 High + Low 115 dB 15 3 /4 4 17 /32 3 47 /64
H24D 2 High + Low 115 dB 15 3 /4 4 17 /32 3 47 /64
H12D H24D

Flush mount electric horns

Flush mounted electric horns. Plastic housing, stainless steel (AISI 316)
diaphragm. Available in 12 Volt. Includes white, black and chrome
plated ABS cover.

Type Vol. Cover Length Cover Height Build in depth
T12 110 dB 5 3 /64 2 7 /16 3 47 /64

T12

Compact electric horns
Deluxe compact electric horns. Horn made of chromium plated ABS
and stainless steel (AISI 316). Available in 12 or 24 Volt and with high
pitch and/or low pitch sound. Supplied with relay.

Type Horns Pitch Freq. (Hz) Vol. Length Height Width
TNA12L 1 Low 420 115 dB 3 13 /16 4 31 /64 3 47 /64
TNA12H 1 High 480 115 dB 3 13 /16 4 31 /64 3 47 /64
TNA24L 1 Low 420 115 dB 3 13 /16 4 31 /64 3 47 /64
TNA24H 1 High 480 115 dB 3 13 /16 4 31 /64 3 47 /64
TNA12D 2 High + Low Both 115 dB 7 43 /64 4 31 /64 3 47 /64
TNA12 TNA24 TNA24D 2 High + Low Both 115 dB 7 43 /64 4 31 /64 3 47 /64

362 V-Quipment - Want to know more? Visit www.vetus.com Dimensions in inches
