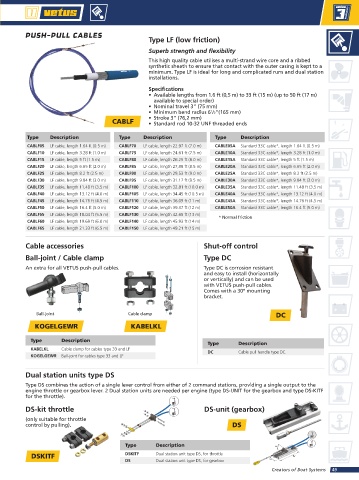

Page 49 - Vetus

PUSH-PULL CABLES
Type LF (low friction)
Superb strength and flexibility
This high quality cable utilises a multi-strand wire core and a ribbed
synthetic sheath to ensure that contact with the outer casing is kept to a
minimum. Type LF is ideal for long and complicated runs and dual station
installations.

Specifications
• Available lengths from 1.6 ft (0,5 m) to 33 ft (15 m) (up to 50 ft (17 m)
available to special order)
• Nominal travel 3” (75 mm)
• Minimum bend radius 6 /2”(165 mm)
1
CABLF • Stroke 3” (76,2 mm)
• Standard rod 10-32 UNF threaded ends

Type Description Type Description Type Description
CABLF05 LF cable, length 1.64 ft (0.5 m) CABLF70 LF cable, length 22.97 ft (7.0 m) CABLE05A Standard 33C cable*, length 1.64 ft (0.5 m)
CABLF10 LF cable, length 3.28 ft (1.0 m) CABLF75 LF cable, length 24.61 ft (7.5 m) CABLE10A Standard 33C cable*, length 3.28 ft (1.0 m)
CABLF15 LF cable, length 5 ft (1.5 m) CABLF80 LF cable, length 26.25 ft (8.0 m) CABLE15A Standard 33C cable*, length 5 ft (1.5 m)
CABLF20 LF cable, length 6.65 ft (2.0 m) CABLF85 LF cable, length 27,88 ft (8.5 m) CABLE20A Standard 33C cable*, length 6.65 ft (2.0 m)
CABLF25 LF cable, length 8.2 ft (2.5 m) CABLF90 LF cable, length 29,53 ft (9.0 m) CABLE25A Standard 33C cable*, length 8.2 ft (2.5 m)
CABLF30 LF cable, length 9.84 ft (3.0 m) CABLF95 LF cable, length 31.17 ft (9.5 m) CABLE30A Standard 33C cable*, length 9.84 ft (3.0 m)
CABLF35 LF cable, length 11.48 ft (3.5 m) CABLF100 LF cable, length 32.81 ft (10.0 m) CABLE35A Standard 33C cable*, length 11.48 ft (3.5 m)
CABLF40 LF cable, length 13.12 ft (4.0 m) CABLF105 LF cable, length 34.45 ft (10.5 m) CABLE40A Standard 33C cable*, length 13.12 ft (4.0 m)
CABLF45 LF cable, length 14.76 ft (4.5 m) CABLF110 LF cable, length 36.09 ft (11 m) CABLE45A Standard 33C cable*, length 14.76 ft (4.5 m)
CABLF50 LF cable, length 16.4 ft (5.0 m) CABLF120 LF cable, length 39.37 ft (12 m) CABLE50A Standard 33C cable*, length 16.4 ft (5.0 m)
CABLF55 LF cable, length 18.04 ft (5.5 m) CABLF130 LF cable, length 42.65 ft (13 m)
* Normal friction
CABLF60 LF cable, length 19.69 ft (6.0 m) CABLF140 LF cable, length 45.93 ft (14 m)
CABLF65 LF cable, length 21.33 ft (6.5 m) CABLF150 LF cable, length 49.21 ft (15 m)

Cable accessories Shut-off control
Ball-joint / Cable clamp Type DC

An extra for all VETUS push-pull cables. Type DC is corrosion resistant
and easy to install (horizontally
or vertically) and can be used
with VETUS push-pull cables.
Comes with a 30º mounting
bracket.

Ball-joint Cable clamp DC

KOGELGEWR KABELKL

Type Description
Type Description
KABELKL Cable clamp for cables type 33 and LF
DC Cable pull handle type DC
KOGELGEWR Ball-joint for cables type 33 and LF

Dual station units type DS
Type DS combines the action of a single lever control from either of 2 command stations, providing a single output to the
engine throttle or gearbox lever. 2 Dual station units are needed per engine (type DS-UNIT for the gearbox and type DS-KITF
for the throttle).

DS-kit throttle DS-unit (gearbox)
(only suitable for throttle
control by pulling). DS

Type Description
DSKITF DSKITF Dual station unit type DS, for throttle
DS Dual station unit type DS, for gearbox
Creators of Boat Systems 49
