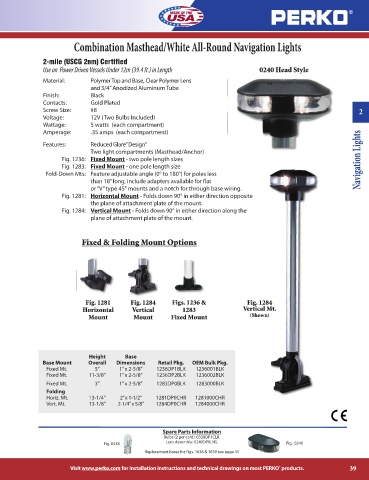

Page 39 - Perko

Combination Masthead/White All-Round Navigation Lights

2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 12m (39.4 ft.) in Length 0240 Head Style
Material: Polymer Top and Base, Clear Polymer Lens
and 3/4” Anodized Aluminum Tube
Finish: Black
Contacts: Gold Plated
Screw Size: #8 2
Voltage: 12V (Two Bulbs Included)
Wattage: 5 watts (each compartment)
Amperage: .35 amps (each compartment)

Features: Reduced Glare” Design”
Two light compartments (Masthead/Anchor)
Fig. 1236: Fixed Mount - two pole length sizes Navigation Lights
Fig. 1283: Fixed Mount - one pole length size
Fold-Down Mts: Feature adjustable angle (0° to 180°) for poles less
than 18” long, include adapters available for flat
or “V” type 45° mounts and a notch for through base wiring.
Fig. 1281: Horizontal Mount - Folds down 90° in either direction opposite
the plane of attachment plate of the mount.
Fig. 1284: Vertical Mount - Folds down 90° in either direction along the
plane of attachment plate of the mount.

Fixed & Folding Mount Options

Fig. 1281 Fig. 1284 Figs. 1236 & Fig. 1284
Horizontal Vertical 1283 Vertical Mt.
Mount Mount Fixed Mount (Shown)

Height Base
Base Mount Overall Dimensions Retail Pkg. OEM Bulk Pkg.
Fixed Mt. 5” 1” x 2-5/8” 1236DP1BLK 1236001BLK
Fixed Mt. 11-3/8” 1” x 2-5/8” 1236DP2BLK 1236002BLK
Fixed Mt. 3” 1” x 2-5/8” 1283DP0BLK 1283000BLK
Folding
Horiz. Mt. 13-1/4” 2” x 1-1/2” 1281DP0CHR 1281000CHR
Vert. Mt. 13-1/8” 2-1/4” x 5/8” 1284DP0CHR 1284000CHR

Spare Parts Information
Bulbs (2 per card): 0338DP1CLR.
Lens Assembly: 0240DP0LNS.
Fig. 0338 Fig. 0240
Replacement bases for Figs. 1636 & 1639 see page 41

®
