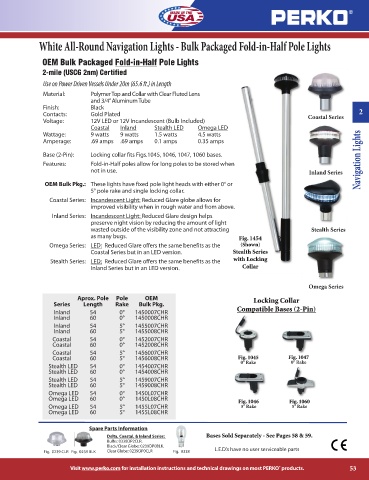

Page 53 - Perko

White All-Round Navigation Lights - Bulk Packaged Fold-in-Half Pole Lights

OEM Bulk Packaged Fold-in-Half Pole Lights
2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Polymer Top and Collar with Clear Fluted Lens
and 3/4” Aluminum Tube
Finish: Black
Contacts: Gold Plated Coastal Series 2
Voltage: 12V LED or 12V Incandescent (Bulb Included)
Coastal Inland Stealth LED Omega LED
Wattage: 9 watts 9 watts 1.5 watts 4.5 watts
Amperage: .69 amps .69 amps 0.1 amps 0.35 amps

Base (2-Pin): Locking collar fits Figs.1045, 1046, 1047, 1060 bases.
Features: Fold-in-Half poles allow for long poles to be stored when Navigation Lights
not in use. Inland Series

OEM Bulk Pkg.: These lights have fixed pole light heads with either 0° or
5° pole rake and single locking collar.
Coastal Series: Incandescent Light: Reduced Glare globe allows for
improved visibility when in rough water and from above.
Inland Series: Incandescent Light: Reduced Glare design helps
preserve night vision by reducing the amount of light
wasted outside of the visibility zone and not attracting Stealth Series
as many bugs.
Fig. 1454
Omega Series: LED: Reduced Glare offers the same benefits as the (Shown)
Coastal Series but in an LED version. Stealth Series
Stealth Series: LED: Reduced Glare offers the same benefits as the with Locking
Inland Series but in an LED version. Collar

Omega Series
Aprox. Pole Pole OEM Locking Collar
Series Length Rake Bulk Pkg.
Inland 54 0° 1450007CHR Compatible Bases (2-Pin)
Inland 60 0° 1450008CHR
Inland 54 5° 1455007CHR
Inland 60 5° 1455008CHR
Coastal 54 0° 1452007CHR
Coastal 60 0° 1452008CHR
Coastal 54 5° 1456007CHR
Coastal 60 5° 1456008CHR Fig. 1045 Fig. 1047
0° Rake 0° Rake
Stealth LED 54 0° 1454007CHR
Stealth LED 60 0° 1454008CHR
Stealth LED 54 5° 1459007CHR
Stealth LED 60 5° 1459008CHR
Omega LED 54 0° 1450L07CHR
Omega LED 60 0° 1450L08CHR
Fig. 1046 Fig. 1060
Omega LED 54 5° 1455L07CHR 5° Rake 5° Rake
Omega LED 60 5° 1455L08CHR

Spare Parts Information
Delta, Coastal, & Inland Series: Bases Sold Separately - See Pages 58 & 59.
Bulbs: 0338DP2CLR.
Black/Clear Globe: 0239DP0BLK.
Fig. 0239 CLR Fig. 0239 BLK Clear Globe: 0239DP0CLR Fig. 0338 L.E.D.’s have no user serviceable parts

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 53
