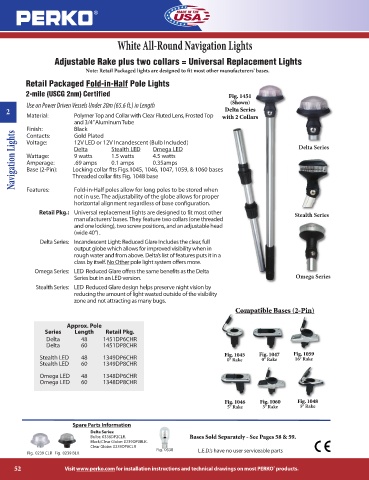

Page 52 - Perko

White All-Round Navigation Lights

Adjustable Rake plus two collars = Universal Replacement Lights
Note: Retail Packaged lights are designed to fit most other manufacturers’ bases.
Retail Packaged Fold-in-Half Pole Lights
2-mile (USCG 2nm) Certified Fig. 1451

Use on Power Driven Vessels Under 20m (65.6 ft.) in Length (Shown)
2 Delta Series
Material: Polymer Top and Collar with Clear Fluted Lens, Frosted Top with 2 Collars
and 3/4” Aluminum Tube
Finish: Black
Navigation Lights Wattage: 9 watts Stealth LED Omega LED Delta Series
Contacts: Gold Plated
Voltage: 12V LED or 12V Incandescent (Bulb Included)
Delta
1.5 watts
4.5 watts
0.1 amps
0.35amps
Amperage: .69 amps
Base (2-Pin): Locking collar fits Figs.1045, 1046, 1047, 1059, & 1060 bases
Threaded collar fits Fig. 1048 base
Features: Fold-in-Half poles allow for long poles to be stored when
not in use. The adjustability of the globe allows for proper
horizontal alignment regardless of base configuration.
Retail Pkg.: Universal replacement lights are designed to fit most other Stealth Series
manufacturers’ bases. They feature two collars (one threaded
and one locking), two screw positions, and an adjustable head
(wide 40°) .
Delta Series: Incandescent Light: Reduced Glare Includes the clear, full
output globe which allows for improved visibility when in
rough water and from above. Delta’s list of features puts it in a
class by itself. No Other pole light system offers more.
Omega Series: LED Reduced Glare offers the same benefits as the Delta
Series but in an LED version. Omega Series
Stealth Series: LED Reduced Glare design helps preserve night vision by
reducing the amount of light wasted outside of the visibility
zone and not attracting as many bugs.
Compatible Bases (2-Pin)

Approx. Pole
Series Length Retail Pkg.
Delta 48 1451DP6CHR
Delta 60 1451DP8CHR
Fig. 1045 Fig. 1047 Fig. 1059
Stealth LED 48 1349DP6CHR 0° Rake 0° Rake 16° Rake
Stealth LED 60 1349DP8CHR
Omega LED 48 1348DP6CHR
Omega LED 60 1348DP8CHR

Fig. 1046 Fig. 1060 Fig. 1048
5° Rake 5° Rake 5° Rake

Spare Parts Information
Delta Series:
Bulbs: 0338DP2CLR. Bases Sold Separately - See Pages 58 & 59.
Black/Clear Globe: 0239DP0BLK.
Clear Globe: 0239DP0CLR
Fig. 0338 L.E.D.’s have no user serviceable parts
Fig. 0239 CLR Fig. 0239 BLK
52 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
